BG600FC-S Large Flow Intelligent Distribution Peristaltic Pump

In stock
SKU: BG600FC-S-YZ35
Regular price $2,156.00

Need a Custom Quote?

Tell us what you need — we’ll respond quickly with pricing and details.

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Help your customers identify what payments are accepted by your store.

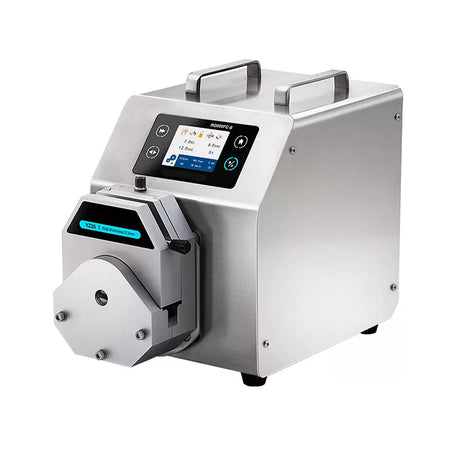

BG600FC-S is a large flow intelligently controlled distribution peristaltic pump. Adopting a 3.5-inch color LCD touch screen display. The operation is simple and intuitive. It has two working modes: transmission and distribution. It can be intelligently set according to different working needs. The motor has strong torque and is suitable for YZ35, YZ35-13L and YZ35LS pump heads. It can be used for data storage, supports multiple remote control modes such as RS485MODBUS.

Advantages:

Multiple modes

It has two working modes of transmission and distribution and can perform repeated timing and quantitative filling.

LCD touchscreen

3.5-inch color LCD, Chinese and English display, Touch screen control.

Adapt to multiple pump heads

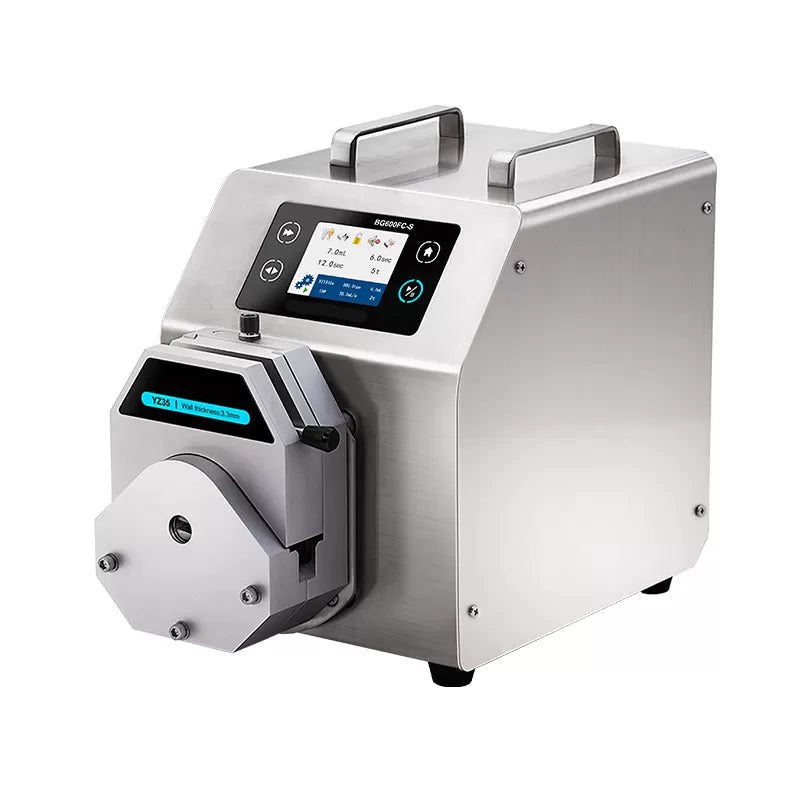

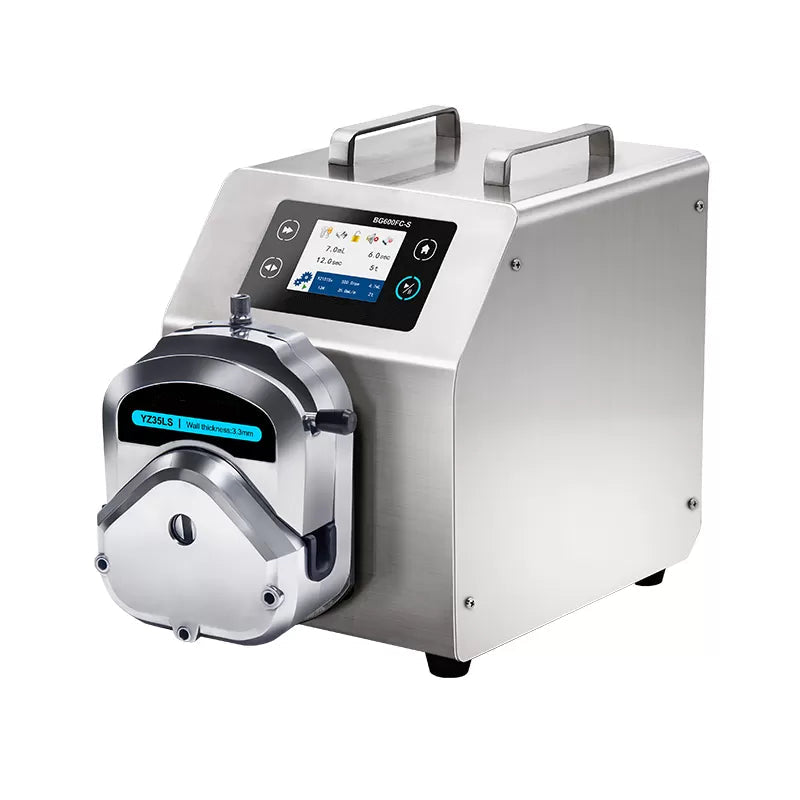

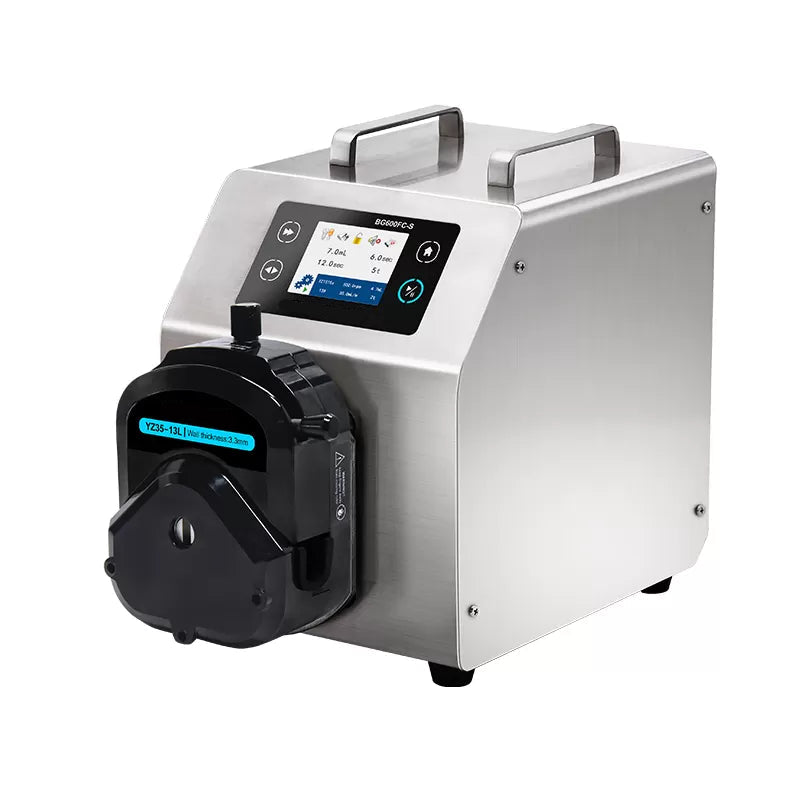

YZ35, YZ35-13L, and YZ35LS pump heads can be installed, and pump heads can be cascaded.

Suction function

The speed angle of reverse operation can be customized to prevent liquid dripping.

Data storage

8 sets of data can be stored for users

Support external control

Support RS485MODBUS communication protocol, analog control, foot switch control.


Applications:

BG600FC-S is a high-flow peristaltic pump used in mineral processing, photovoltaic, chemical, environmental protection, pharmaceutical equipment, and admixture matching.

Technical Parameter
Drive model BG600FC-S
Max speed 600rpm (reversible)
Speed resolution 0.1rpm
Max flow 12000mL/min
Speed mode Touch screen adjustment
Display method Color LCD display
Suction angle 10°-720° (0° means no back suction)
Suction speed 10-300rpm
Power supply AC220±10% (standard) or AC110V±10% (optional)
Power <400W
External control interface Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication.
Drive size 340X238X325.5 mm
Protection class IP31 (indoor use, avoid prolonged exposure to UV rays)
Ambient temperature 0-40℃
Pump Head Hose ID(mm) Wall Thickness(mm) Max Flow(ml/min) Max Speed(rpm)
YZ35 73# 9.6 3.3 7400 600
82# 12.7 3.3 12000
YZ35-13L 73# 9.6 3.3 7400
82# 12.7 3.3 12000
YZ35LS 73# 9.6 3.3 7400
82# 12.7 3.3 12000



Test conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).
