BG600LC-S Peristaltic Pump High Flow Max flow rate 12L/min. It adopts 3.5-inch color LCD touchscreen control. Chinese and English operation interface, real-time display of various operating parameters on the same screen, easy to use. BG600LC-S high flow peristaltic pump provides user data storage function, realizes fast transmission, and meets different work needs. Large torque in both directions. It is suitable for YZ35, YZ35-13L, and YZ35LS pump heads and can be cascaded to multiple pump heads. Perform liquid volume calibration, support RS485MODBUS communication protocol, and provide a variety of external control methods.
Advantages
LCD touchscreen peristaltic pump

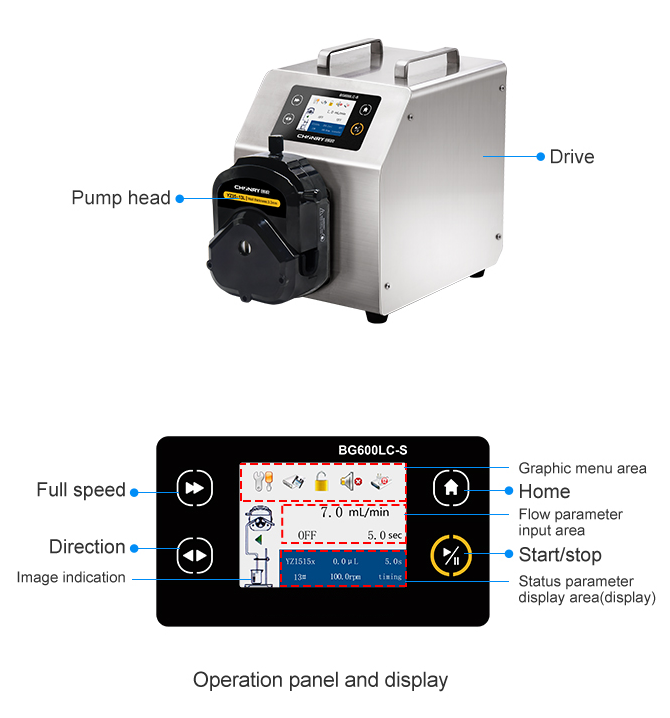

3.5-inch color LCD touchscreen, Chinese and English display, touch screen control.
Liquid Suction function
The speed angle of reverse operation can be customized to prevent liquid dripping.
Adapt to multiple pump heads

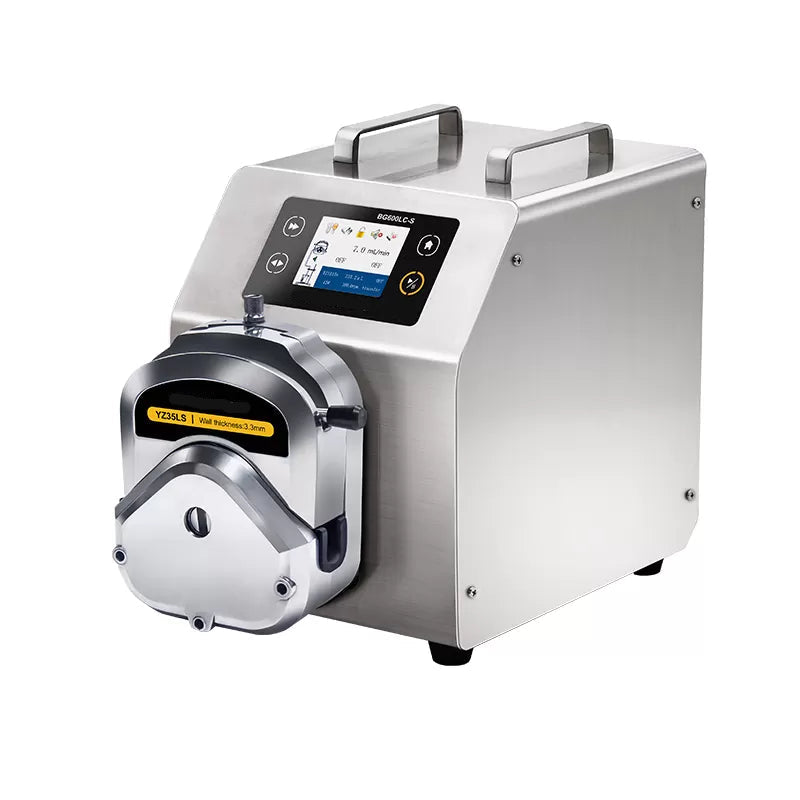

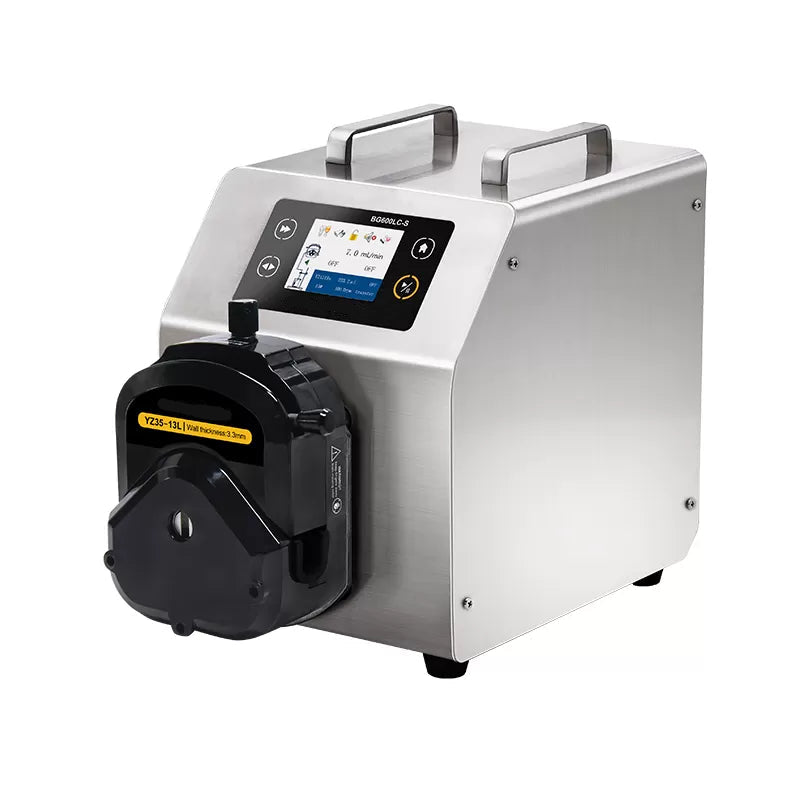

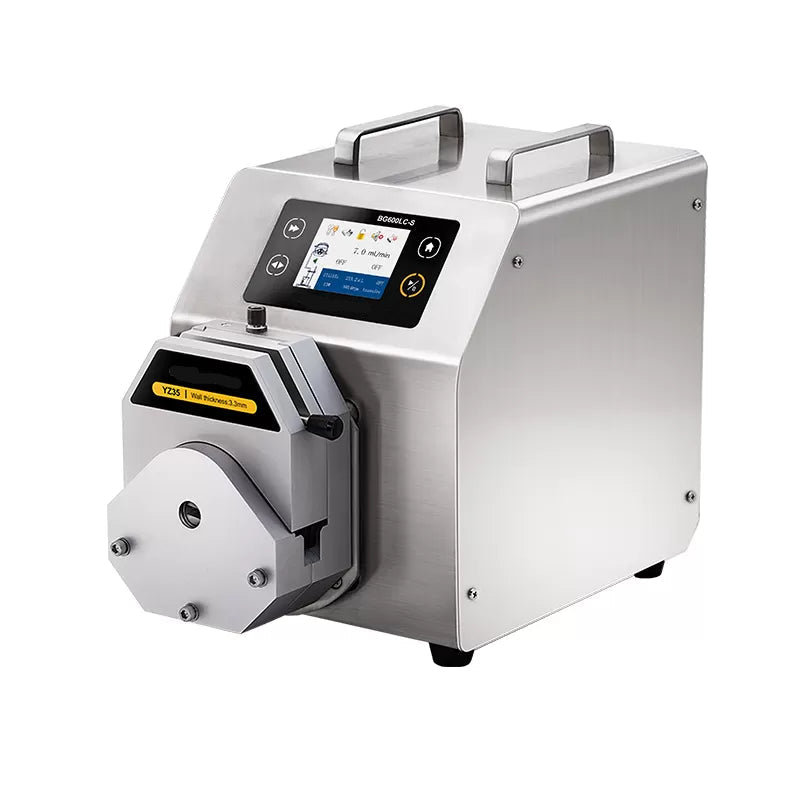

YZ35, YZ35-13L, and YZ35LS pump heads can be installed, and pump heads can be cascaded.
Multiple working modes
BG600LC-S high flow peristaltic pump is versatile. It has liquid transmission mode, timing mode, quantitative mode, and timing quantitative mode.
Data storage
8 sets of data can be stored for users.
Support external control
Support RS485MODBUS communication protocol, analog control, and foot switch control.
Application:
Used in mineral processing, pharmaceutical factories, chemical industries, environmental protection and other fields, or used with industrial equipment.
| Technical Parameter | |
| Drive model | BG600LC-S Peristaltic Pump High Flow 12L Chemical Pump |
| Max speed | 600rpm (reversible) |
| Speed resolution | 0.1rpm |
| Max flow | 12000mL/min |
| Speed mode | Touch screen adjustment |
| Display method | Color LCD display |
| Suction angle | 10°-720° (0° means no back suction) |
| Suction speed | 10-300rpm |
| Power supply | AC220±10% (standard) or AC110V±10% (optional) |
| Power | ＜400W |
| External control interface | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication. |
| Drive size | 340X238X325.5 mm |
| Protection class | IP31 (indoor use, avoid prolonged exposure to UV rays) |
| Drive weight | 21kg |
Pump head/hose flow parameter table:
| Pump Head | Hose | ID（mm） | Wall Thickness（mm） | Max Flow(ml/min) | Max Speed(rpm) |
| YZ35 | 73# | 9.6 | 3.3 | 7400 | 600 |
| 82# | 12.7 | 3.3 | 12000 | ||
| YZ35-13L | 73# | 9.6 | 3.3 | 7400 | |
| 82# | 12.7 | 3.3 | 12000 | ||
| YZ35LS | 73# | 9.6 | 3.3 | 7400 | |
| 82# | 12.7 | 3.3 | 12000 |
Test conditions:
1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.
2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).
