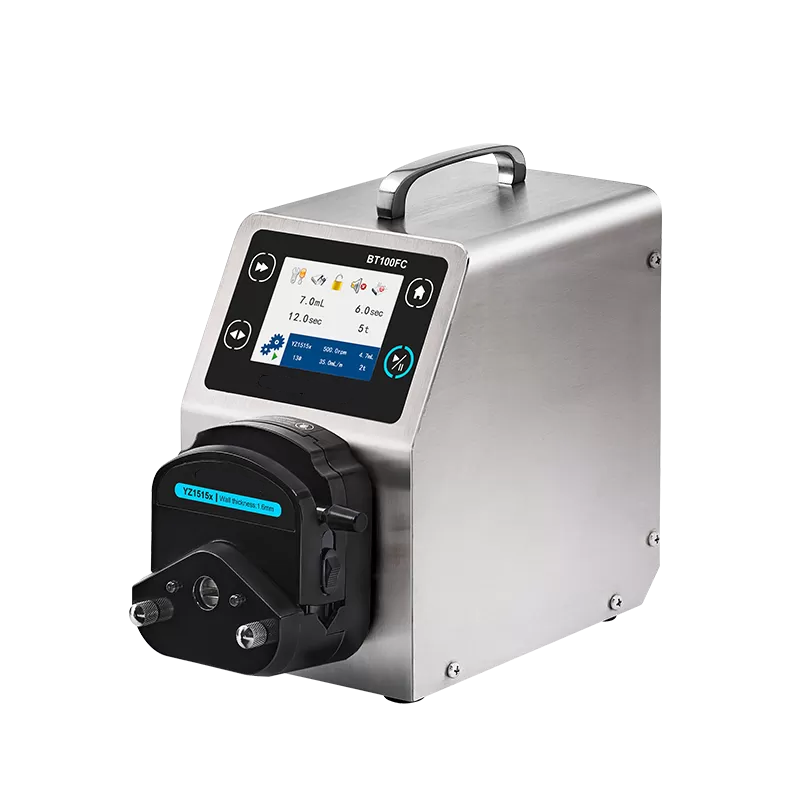

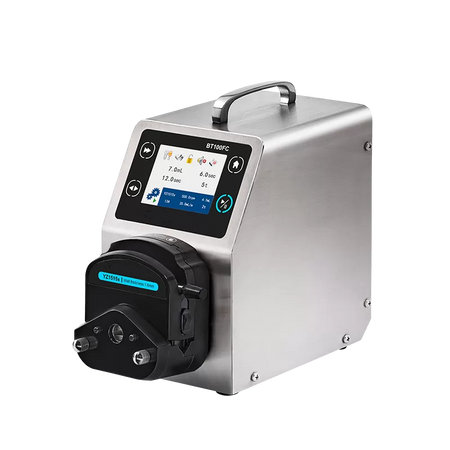

BT100FC Liquid Filling Peristaltic Pump Dispenser Reagent Filling
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.
- Flow rate: 0.0015- 480mL/min
- The BT100FC peristaltic pump dispenser is used for precision liquid filling. Accuracy liquid volume filling.
- Application in reagent Filling Pump, food filling and drug filling. E-liquid filling, Cosmetic filling and essential oils filling.
- Power-off memory function, easy operation.
- Flow rate calibration function

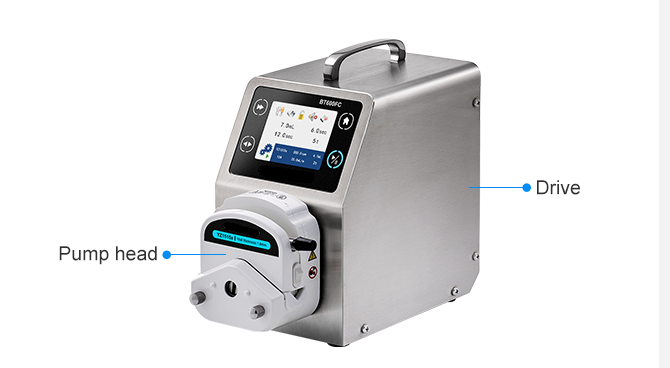

The flow rate of BT100FC dispensing peristaltic pump is from 0.0015 to 480mL/min. It adopts a 3.5-inch screen displaying the flow rate and running state with high accuracy. It is equipped with power-off memory that returns to the previous state when power on. And flow rate calibration function. BT100FC has the dispensing and transferring of two working models. It is widely used for medicine filling, the chemical industry and transferring food fluid products.
Specification

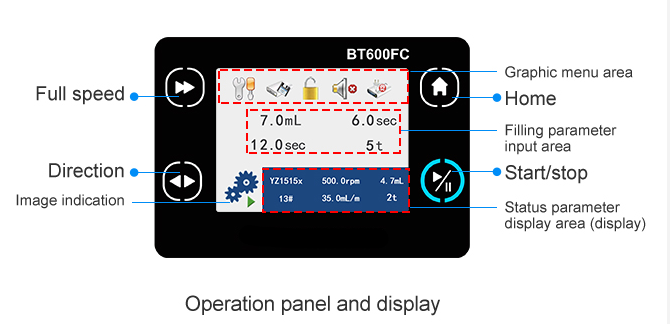

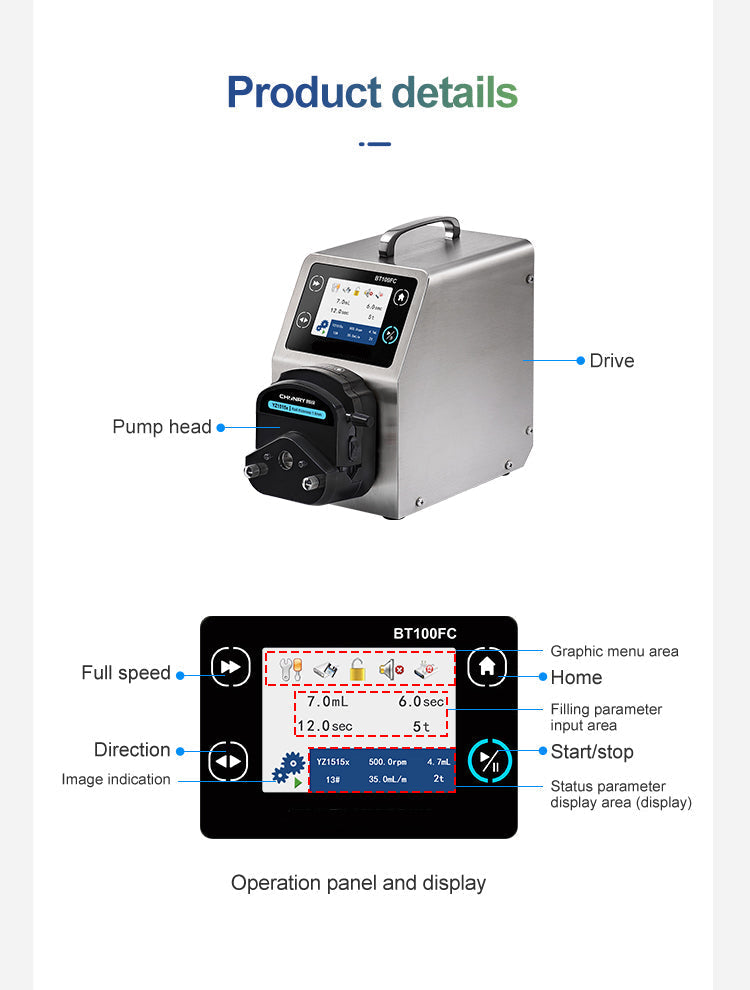

- LCD touch: 3.5-inch color LCD, and English display, touch screen control.
- Flow calibration: The flow calibration function it is suitable for transferring liquids with higher precision
- Data storage: 8 sets of data can be stored for users
- Multiple working modes: dispensing and transferring of two working models
- Acceptable pump heads: YZ, DG, TX series pump heads can be installed, and Pump heads can be cascaded.

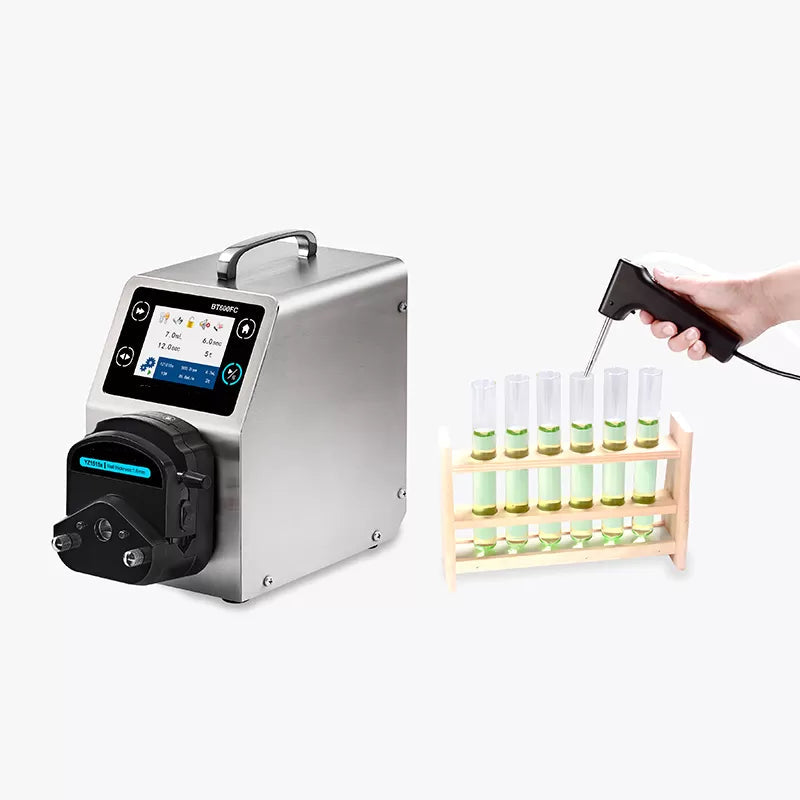

- Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control
- Accuracy liquid volume filling
Application
It is mostly used in testing reagents, oral liquids, veterinary drugs and other pharmaceutical fillings, or in chemical, food, and other fields.
Drive model | BT100FC Liquid Filling Peristaltic Pump Dispenser |
Max Speed | 100rpm(reversible) |
Speed resolution | 0.1rpm |
Max flow | 380mL/min |
Display method | Color LCD display |
Speed mode | Touch screen adjustment |
Timing range | 0.1s-9999min |
Quantitative range | 0.001mL-9999L |
Filling times | 0-9999t |
Back suction angle | 10°-720° (0° means no back suction) |
Back suction Speed | 10-100rpm |
Power | <22W |
Drive size | 215*136.4*236.7mm |
Drive weight | 4.64kg |
Power supply | AC220V±10% (standard) or AC110V±10% (optional) |

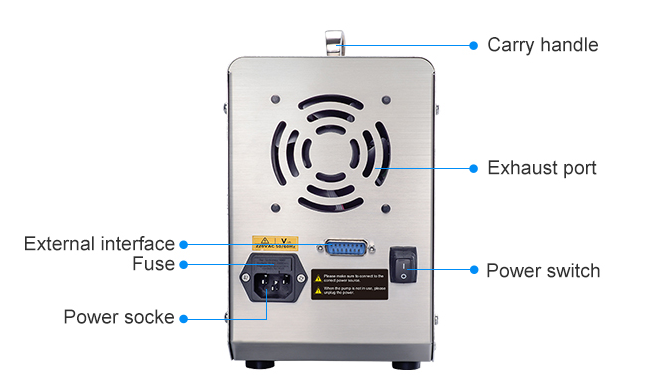

External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication |
Pump head | Model | Max Speed(rpm) | Peristaltic Pump Tubing (ID*Wall thickness)mm | ||||||
13# (0.8*1.6) |
14# (1.6*1.6) |
19# (2.4*1.6) |
16# (3.1*1.6) |
25# (4.8*1.6) |
17# (6.4*1.6) |
18# (7.9*1.6) |
|||
YZ1515X | BT100FC | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 |
YZ15m | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 | |
YZ15ma | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 | |
15#(4.8*2.4) | 24#(6.4*2.4) | ||||||||
YZ2515X | BT100FC | 100 | 170 | 290 | |||||
0.5*0.8 | 1*1 | 2*1 | 2.4*0.8 | 3*1 | |||||
DG | BT100FC | 100(10) | 1.5 | 4 | 13 | 17 | 27 | ||
DG | 100(6) | 2 | 6 | 19 | 24 | 36 | |||
14#(1.6*1.6) | 16#(3.1*1.6) | 25#(4.8*1.6) | |||||||
ZN15 | BT100FC | 100 | 27 | 82 | 170 | ||||
24#(6.4*2.4) | |||||||||
ZN25 | BT100FC | 100 | 290 |
