BT100LC Peristaltic Pump for Sale
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.
- Flow Rate: 0.0015- 480mL/min
- Peristaltic chemical dosing pump for sale.
- Multi-working model: transmission mode, timing mode, Quantitative mode, timed quantitative mode.
- It is widely used in the medical industry, chemical liquid transferring, and battery-reducing fluid. If you want a peristaltic pump, contact us for the best price.

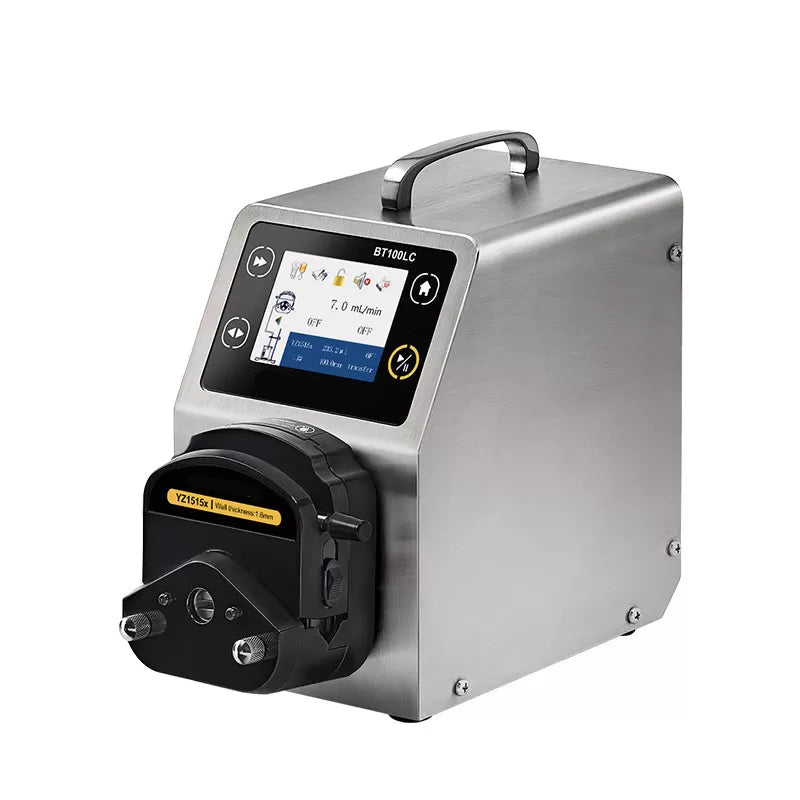

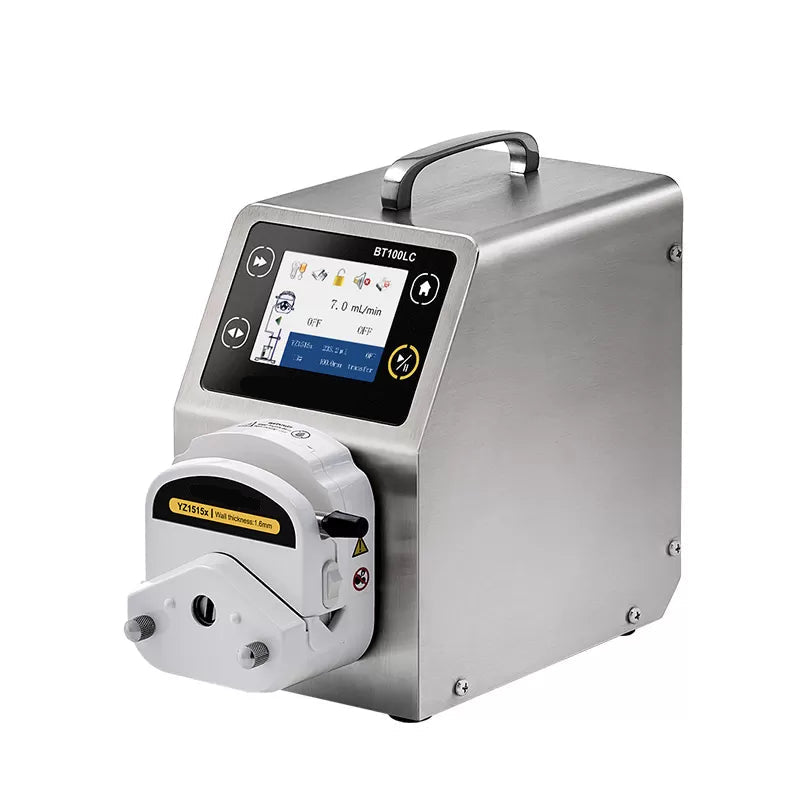

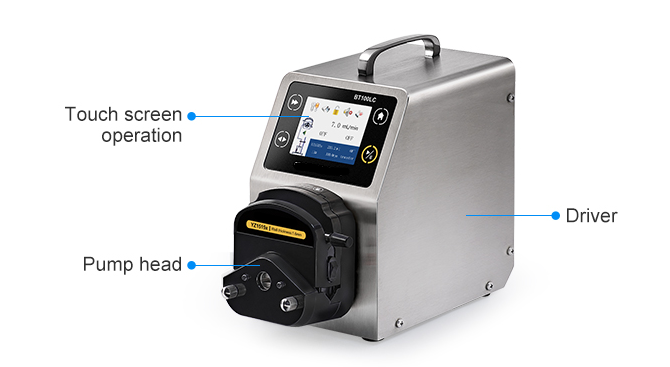

BT100LC peristaltic pump for sale. The flow rate range is from 0.0015 to 480mL/min. It is widely used in the medical industry and chemical liquid transferring. Powerful functions micro fluid filling and transmission. The stainless steel all-inclusive design is sturdy and durable. It adopts 3.5-inch color LCD screen and easy touch operation. The intuitive screen displays the transmission status, flow data, setting parameters, and transmission direction with animation on the same screen. If you want a peristaltic pump, contact us for the best price.
Features:

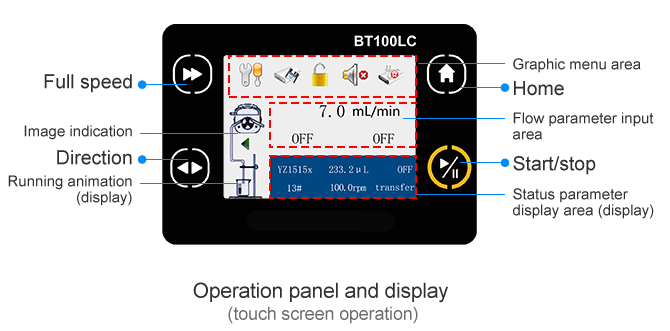

LCD touch: 3.5-inch color LCD, touch screen control, simple to operate.
Flow calibration: The flow calibration function it is suitable for transferring liquids with higher precision
Data storage: 8 sets of data can be stored for users
Multiple working modes: Transmission mode, timing mode, Quantitative mode, timed quantitative mode

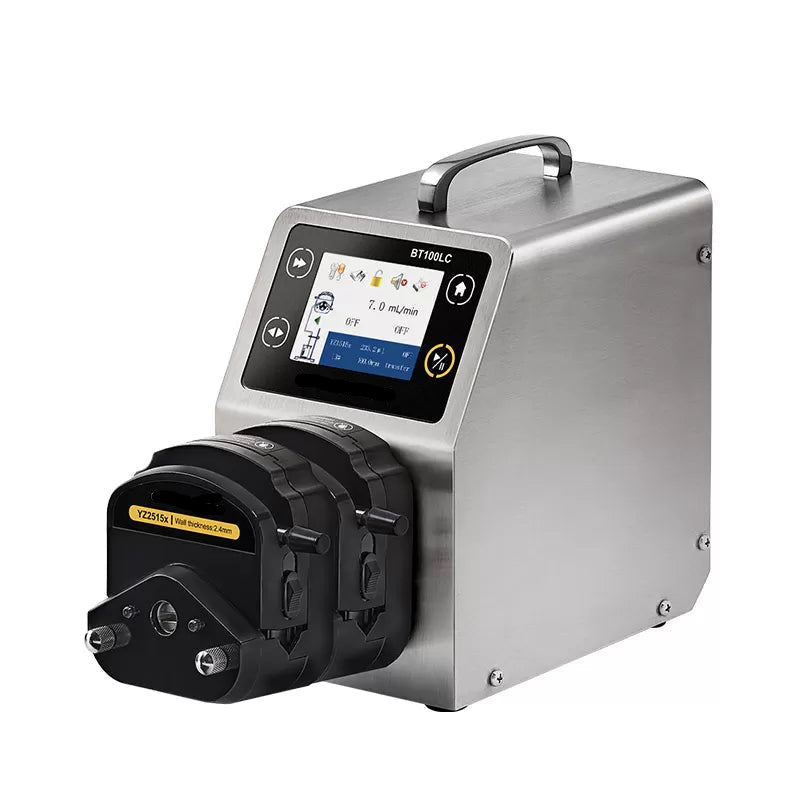

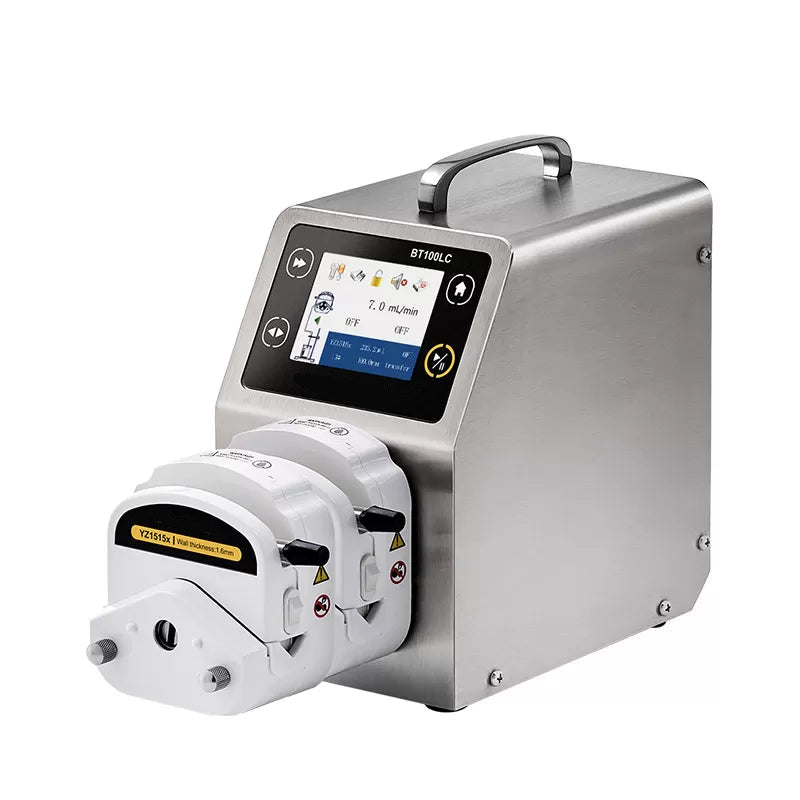

Adapt to multiple pump heads: YZ, DG, and TX series pump heads can be installed, and pump heads can be cascaded.
Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control

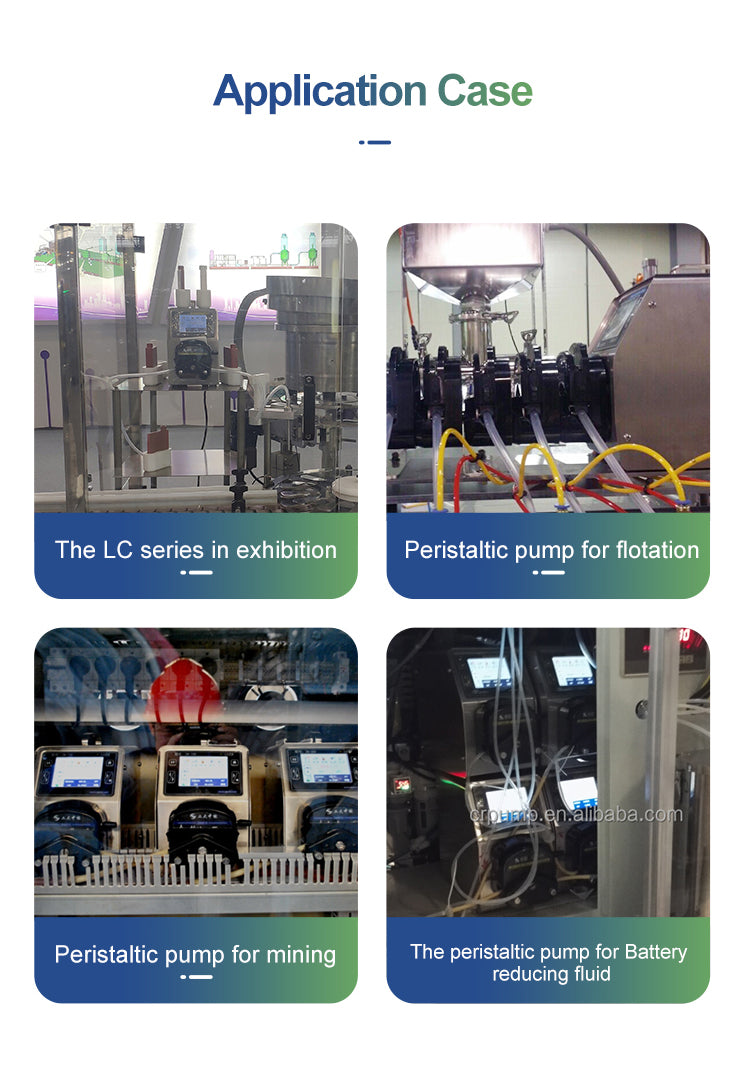

Application
They are used in laboratories, biopharmaceuticals, printing, mineral processing and other fields.
| Drive model | BT100LC |
| Max Speed | 100rpm(reversible) |
| Max flow | 480mL/min |
| Speed resolution | 0.1rpm |
| Display method | Color LCD (EN and CN optional) |
| Speed mode | Touch screen adjustment |
| Timing range | 0.1s-9999min |
| Quantitative range | 0.001mL-9999L |
| Buck suction angle | 10°-720° (0° means no back suction) |
| Buck suction speed | 10-100rpm |
|
Power |
＜22W |
| Drive size | 215*136.4*236.7mm |
| Drive Weight | 4.64kg |
| Power supply | AC220±10% (standard) or AC110V±10% (optional) |
| External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) |
| Pump head | Model | Max Speed(rpm) | Peristaltic Pump Tubing (ID*Wall thickness)mm | ||||||
| 13# (0.8*1.6) |
14# (1.6*1.6) |
19# (2.4*1.6) |
16# (3.1*1.6) |
25# (4.8*1.6) |
17# (6.4*1.6) |
18# (7.9*1.6) |
|||
| YZ1515X | BT100LC | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 |
| YZ15m | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 | |
| YZ15ma | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 | |
| 15#(4.8*2.4) | 24#(6.4*2.4) | ||||||||
| YZ2515X | BT100LC | 100 | 170 | 290 | |||||
| 0.5*0.8 | 1*1 | 2*1 | 2.4*0.8 | 3*1 | |||||
| DG | BT100LC | 100(10) | 1.5 | 4 | 13 | 17 | 27 | ||
| DG | 100(6) | 2 | 6 | 19 | 24 | 36 | |||
| 14#(1.6*1.6) | 16#(3.1*1.6) | 25#(4.8*1.6) | |||||||
| ZN15 | BT100LC | 100 | 27 | 82 | 170 | ||||
| 24#(6.4*2.4) | |||||||||
| ZN25 | BT100LC | 100 | 290 | ||||||
