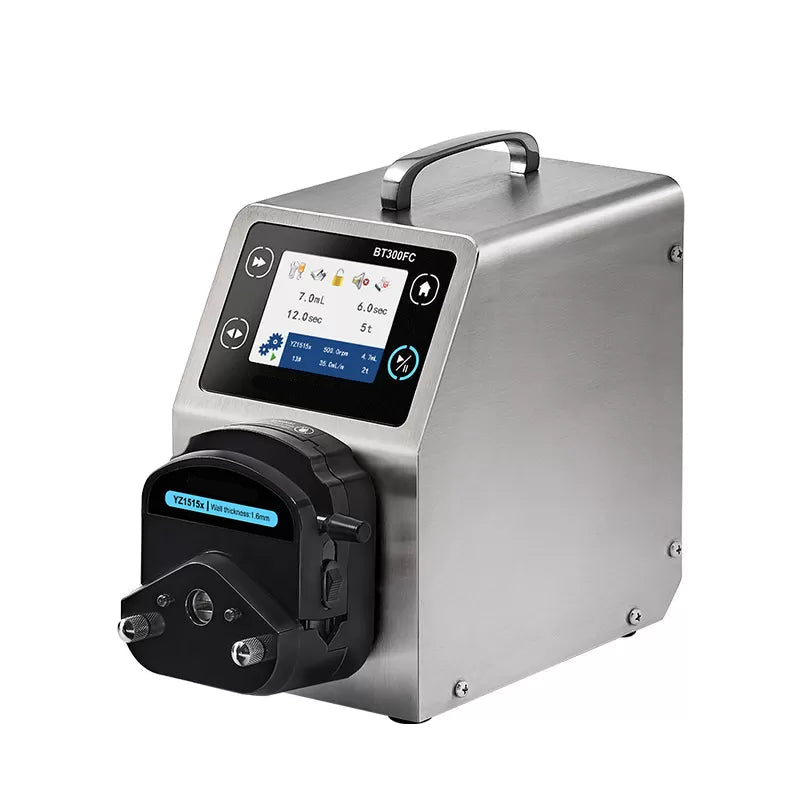

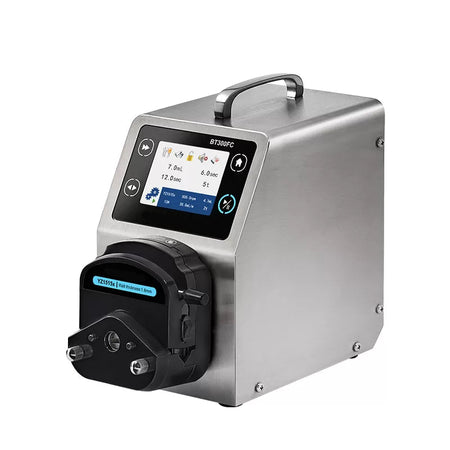

BT300FC Peristaltic Pump Bottle Filling Reaptatable
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.
Flow rate: 0.007-1440mL/min
BT300FC bottle filling peristaltic pump with high precision. It can realize repeatable accuracy filling.
BT300FC microfluidic bottle filling peristaltic pump series is an intelligent filling peristaltic pump, which adopts a 3.5-inch touchscreen operation. It could display the parameters and running state and has four working modes. BT300FC precise pump realizes repeated timing and quantitative distribution. The stainless steel all-inclusive design is strong and durable. Besides, it can store 8 sets of filling data, realizing fast filling. Supporting various external control methods such as RS485/MODBUS communication protocol. The flow rate ranges from 0.007 to 1440mL/min.
Specification

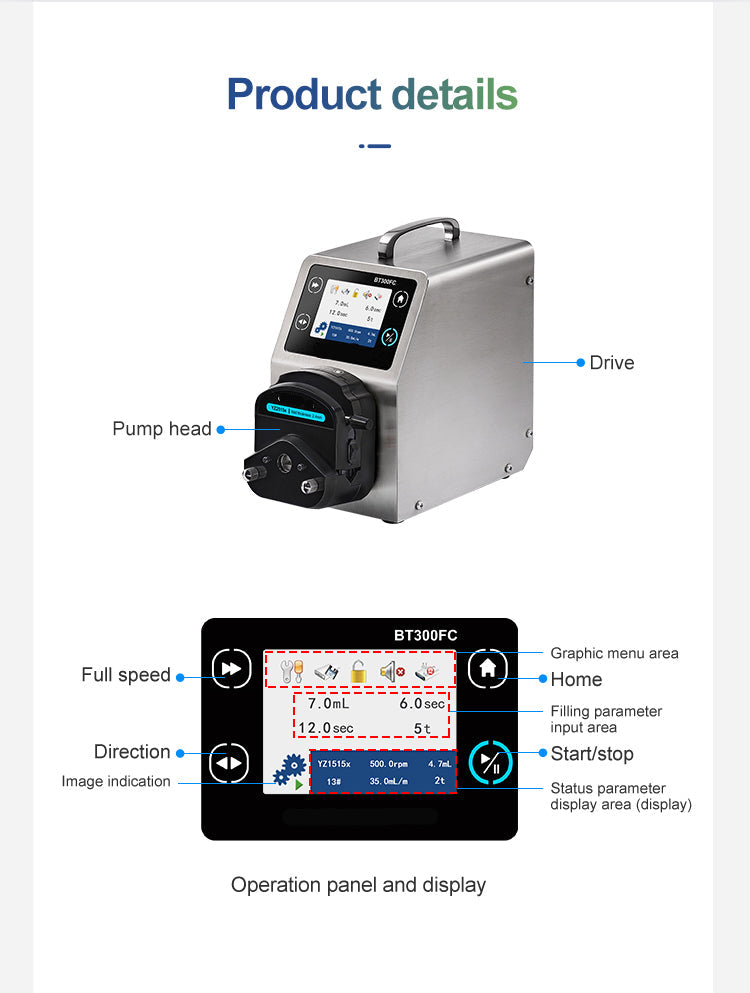

LCD touch：3.5-inch color LCD, English Display, touch screen control.
Flow calibration： With the flow calibration function, it is suitable for transferring liquids with higher precision
Data storage： 8 sets of data can be stored for users
Multiple working modes： dispensing and transferring of two working models

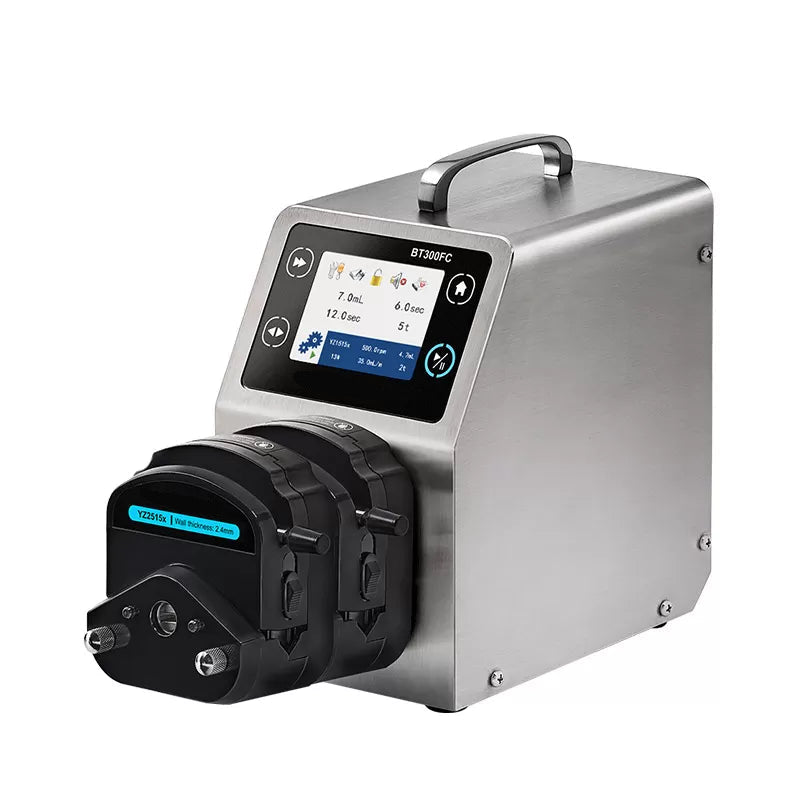

Acceptable pump heads： YZ, DG, and TX series pump heads can be installed, and Pump heads can be cascaded.
Support external control： Support RS485/MODBUS communication protocol, analog control, foot switch control
Application
It is mostly used in testing reagents, oral liquids, veterinary drugs and other medicine fillings, or in chemical, food, and other fields.
| Drive model | BT300FC Microfluidic Bottle Filling Peristaltic PumpReaptatable |
| Max Speed | 300rpm(reversible) |
| Speed resolution | 0.1rpm |
| Max flow | 1440mL/min |
| Display method | Color LCD display |
| Speed mode | Touch screen adjustment |
| Timing range | 0.1s-9999min |
| Quantitative range | 0.001mL-9999L |
| Filling times | 0-9999t |
| Back suction angle | 10°-720° (0° means no back suction) |
| Back suction Speed | 10-300rpm |
| Power | ＜35W |
| Drive size | 215*136.4*236.7mm |
| Drive weight | 4.64kg |
| Power supply | AC220V±10% (standard) or AC110V±10% (optional) |
| External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication |
| Pump head | Model | Max Speed | Peristaltic Pump Tube (ID*Wall thickness)mm |
||||||
| 13# (0.8*1.6) |
14# (1.6*1.6) |
19# (2.4*1.6) |
16# (3.1*1.6) |
25# (4.8*1.6) |
17# (6.4*1.6) |
18# (7.9*1.6) |
|||
| YZ1515X | BT300FC | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 |
| YZ15m | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 | |
| YZ151ma | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 | |
| 15#(4.8*2.4) | 24#(6.4*2.4) | ||||||||
| YZ2515X | BT300FC | 300 | 510 | 870 | |||||
| 14#(1.6*1.6) | 16#(3.1*1.6) | 25#(4.8*1.6) | |||||||
| ZN15 | BT300FC | 300 | 81 | 246 | 510 | ||||
| 24#(6.4*2.4) | |||||||||
| ZN25 | BT300FC | 300 | 870 | ||||||
