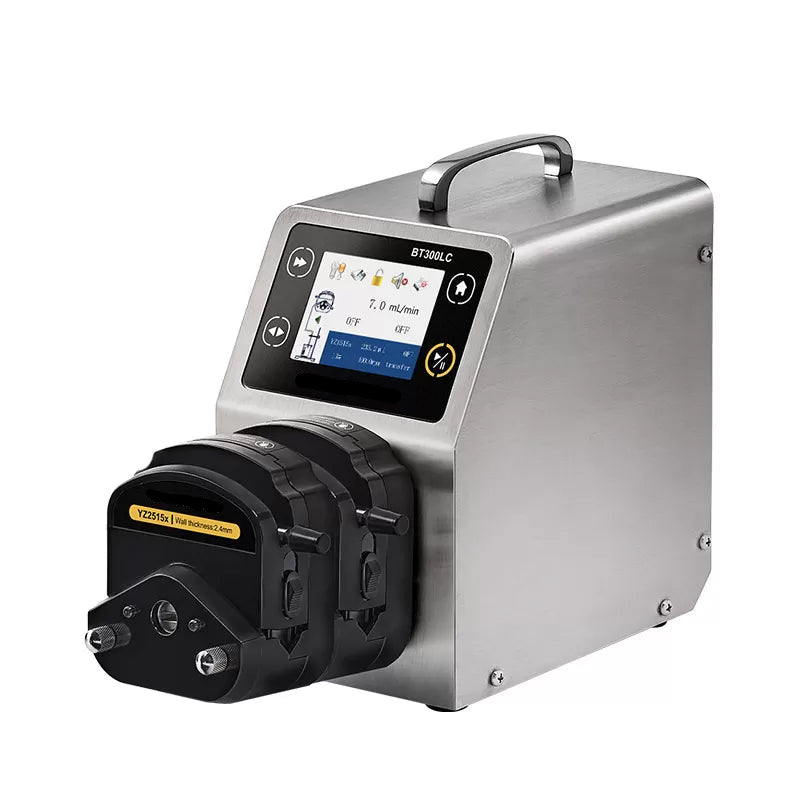

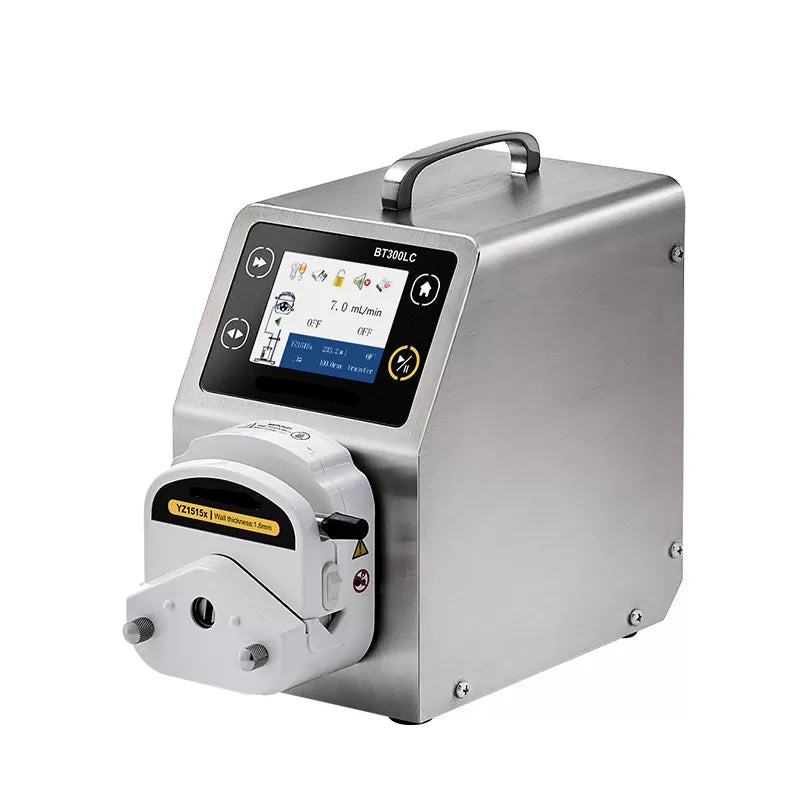

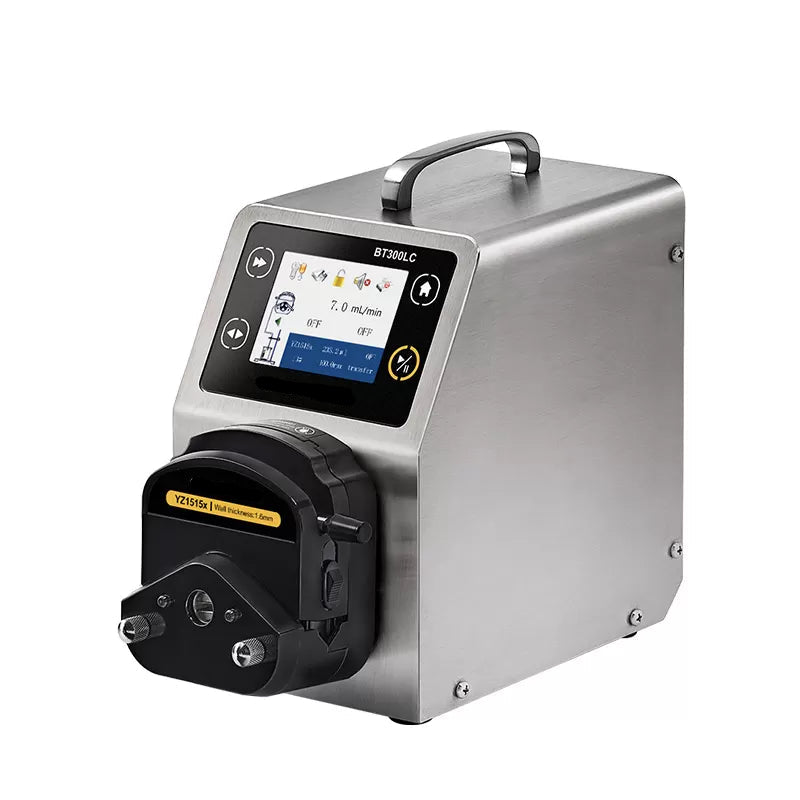

BT300LC Peristaltic Dosing Pump Stepper Motor
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.
- Flow Rate: 0.007- 1440mL/min
- Chemical transfer peristaltic pump. Peristaltic dosing pump.
- It is used for transferring chemical material, alkaline and acidic liquids. Strong corrosion resistance.
The BT300LC peristaltic metering pumps are used for transferring chemical material, such as alkaline and acidic liquid. It is a type of chemical transfer pump that has strong corrosion resistance. The flow rate is from 0.007 to 1440mL/min. This BT300LC pump adopts stainless shells, durable. It has a power-off save function and a flow rate calibration function to ensure high accuracy and precision.
Specification

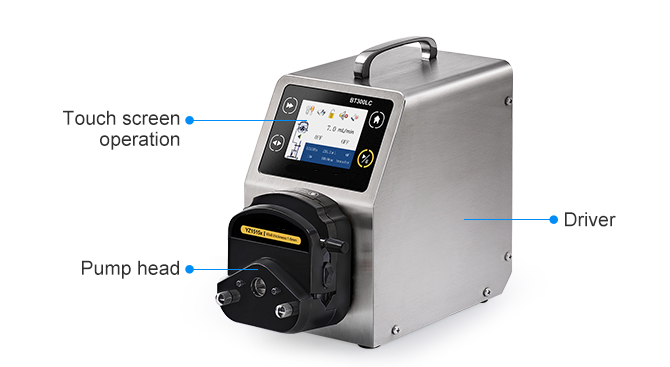

LCD touch: 3.5-inch color LCD, touch screen control, simple to operate.
Flow calibration: The flow calibration function it is suitable for transferring liquids with higher precision
Data storage: 8 sets of data can be stored for users
Multiple working modes: Transmission mode, timing mode, Quantitative mode, timed quantitative mode

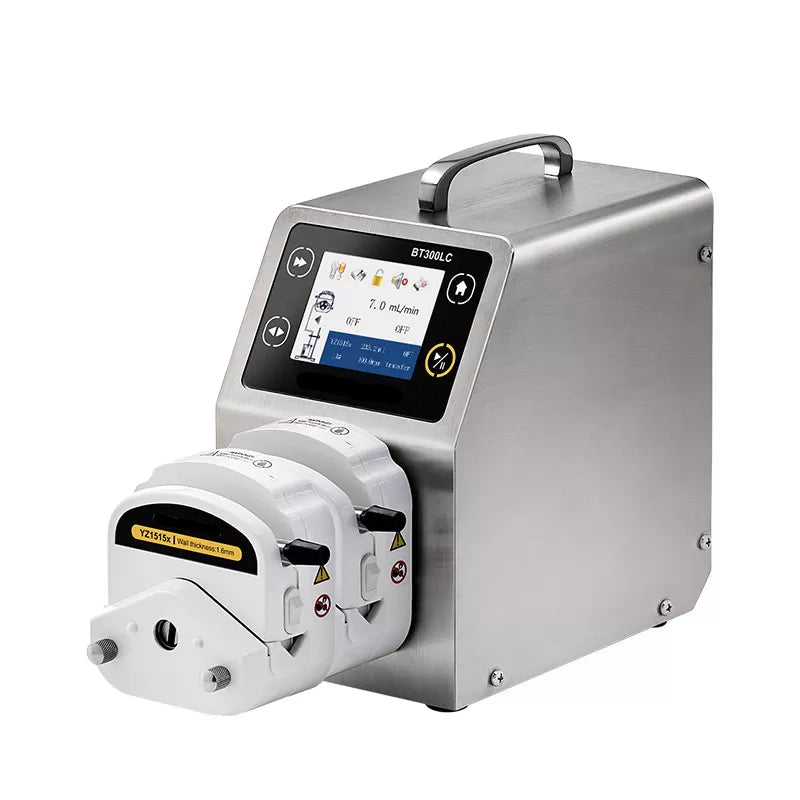

Adapt to multiple pump heads: YZ and DG pump heads can be installed, and pump heads can be cascaded.
Support external control: Support RS485/MODBUS communication protocol, analog control, and foot switch control
Application
Used in laboratories, biopharmaceuticals, printing, mineral processing and other fields.
| Drive model | BT300LC |
| Max Speed | 300rpm(reversible) |
| Max flow | 1440mL/min |
| Speed resolution | 0.1rpm |
| Display method | Color LCD |
| Speed mode | Touch screen adjustment |
| Timing range | 0.1s-9999min |
| Quantitative range | 0.001mL-9999L |
| Buck suction angle | 10°-720° (0° means no back suction) |
| Buck suction speed | 10-300rpm |
|
Power |
＜35W |
| Drive size | 215*136.4*236.7mm |
| Drive Weight | 4.64kg |
| Power supply | AC220±10% (standard) or AC110V±10% (optional) |
| External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) |
| Pump head | Model | Max Speed | Peristaltic Pump Tube (ID*Wall thickness)mm |
||||||
| 13# (0.8*1.6) |
14# (1.6*1.6) |
19# (2.4*1.6) |
16# (3.1*1.6) |
25# (4.8*1.6) |
17# (6.4*1.6) |
18# (7.9*1.6) |
|||
| YZ1515X | BT300LC | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 |
| YZ15m | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 | |
| YZ151ma | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 | |
| 15#(4.8*2.4) | 24#(6.4*2.4) | ||||||||
| YZ2515X | BT300LC | 300 | 510 | 870 | |||||
| 14#(1.6*1.6) | 16#(3.1*1.6) | 25#(4.8*1.6) | |||||||
| ZN15 | BT300LC | 300 | 81 | 246 | 510 | ||||
| 24#(6.4*2.4) | |||||||||
| ZN25 | BT300LC | 300 | 870 | ||||||
