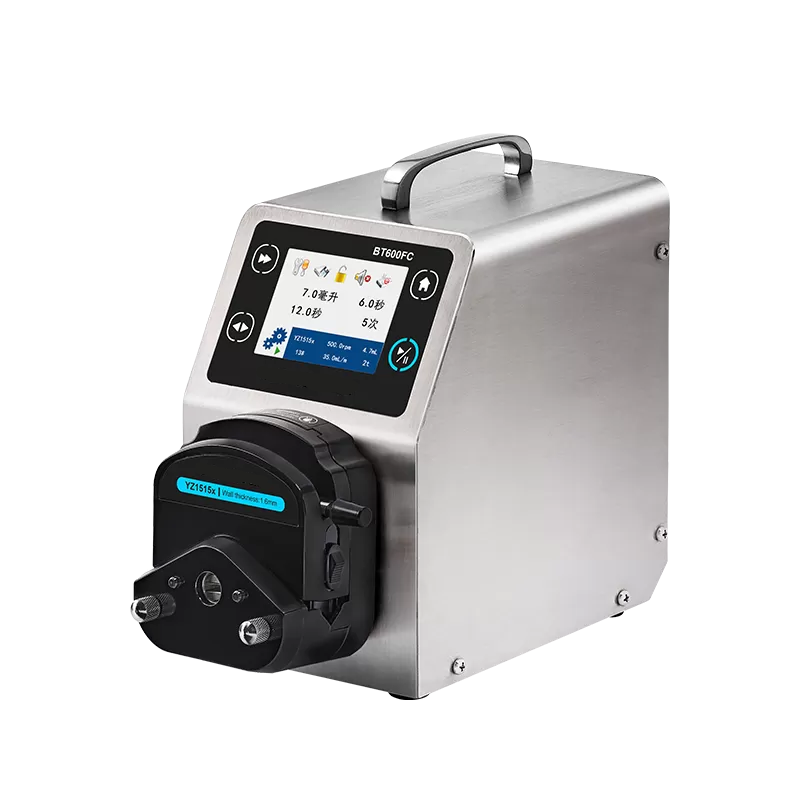

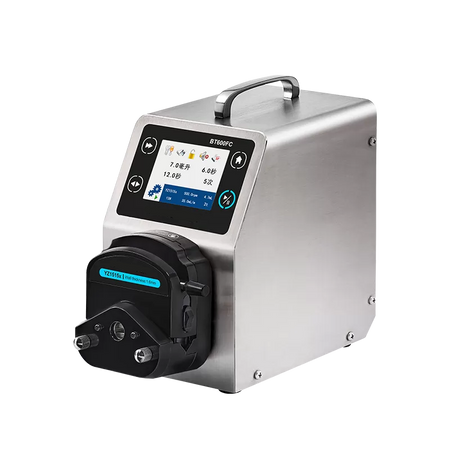

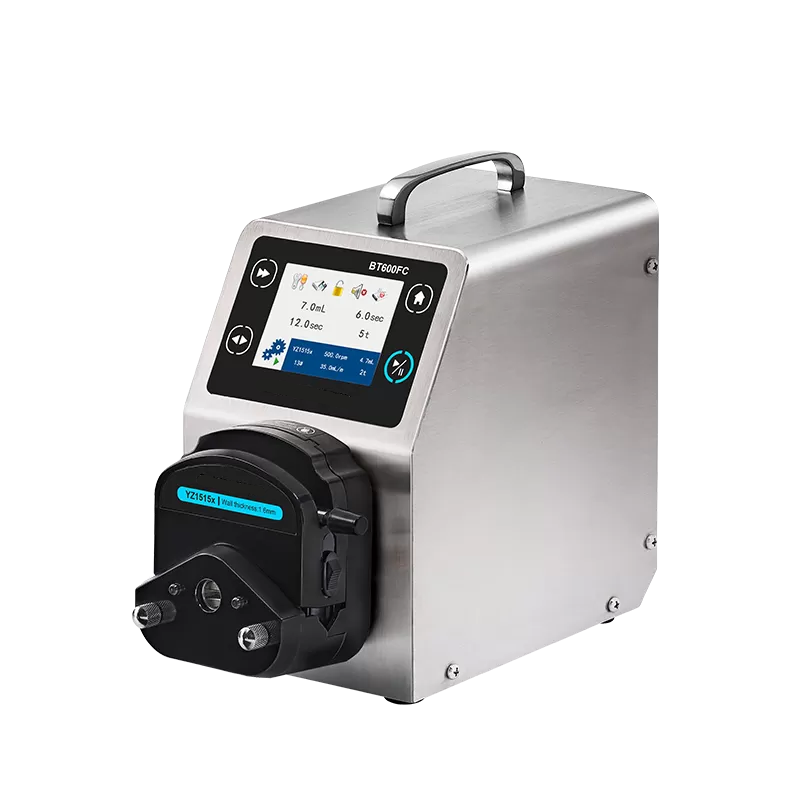

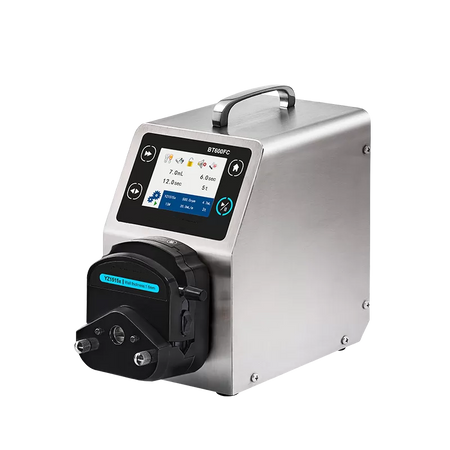

BT600FC Dispensing Peristaltic Pump
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.
- Flow Rate: 0.007-2280mL/min
- BT600FC Liquid dispensing Peristaltic Pump. Liquid bottle filling work: drinks/wines/perfumes/essential oils/cosmetics, etc.
- Digital LCD screen to display speed. Touchscreen programmable peristaltic pump.

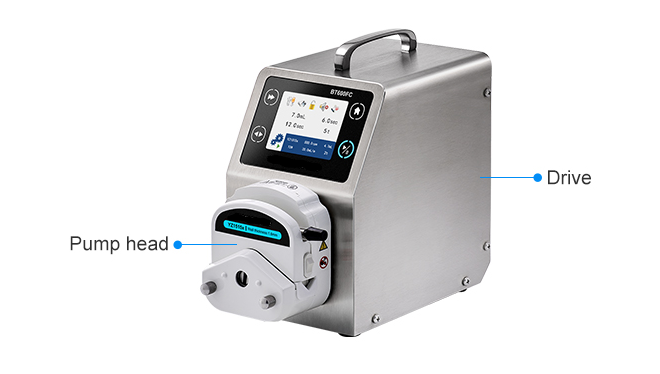

BT600FC dispensing peristaltic pump adopts a 3.5-inch LCD to display the flow rate and speed parameters. BT600FC peristaltic tube pumps are used for precision micro liquid dispensing and filling. Liquid bottle filling work: drinks/wines/perfumes/essential oils/cosmetics, etc. The flow rate is up to 2280ml/min. Accurate flow rate control. Long-term life and low maintenance.
The membrane keypad is easy to operate. The stainless steel all-inclusive design is strong and durable. It can store 8 sets of filling data, realizing fast filling. The BT600FC peristaltic dosing pumping provides manual, remote analog or RS485/MODBUS communication protocol control.
Specification
LCD touch: 3.5-inch color LCD, Chinese, and English Display, touch screen control.
Flow calibration： The flow calibration function it is suitable for transferring liquids with higher precision
Data storage： 8 sets of data can be stored for users
Multi-working modes: transmission and distribution, can perform repeated timing and quantitative filling.
Acceptable pump heads： YZ, DG, and TX series pump heads can be installed, and Pump heads can be cascaded.

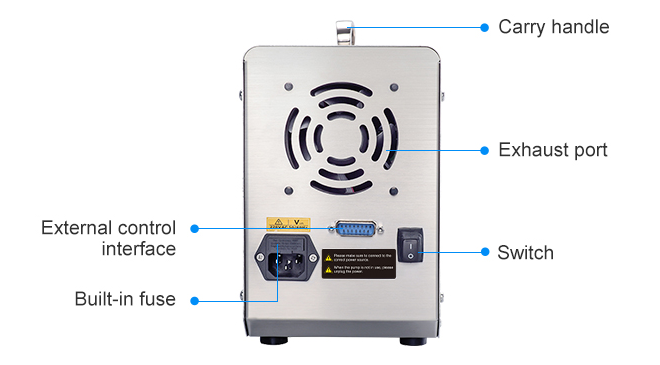

Support external control： Support RS485/MODBUS communication protocol, analog control, foot switch control
Application
-Food industry
-Laboratory research institute
-Filling and dispensing
-Medical equipment
| Drive model | BT600FC dispensing peristaltic pump |
| Max Speed | 600rpm(reversible) |
| Speed resolution | 0.1rpm |
| Max flow | 2280mL/min |
| Display method | Color LCD display |
| Speed mode | Touch screen adjustment |
| Timing range | 0.1s-9999min |
| Quantitative range | 0.001mL-9999L |
| Filling times | 0-9999t |
| Back suction angle | 10°-720° (0° means no back suction) |
| Back suction Speed | 10-300rpm |
| Power | <50W |
| Drive size | 215*136.4*236.7mm |
| Drive weight | 4.94kg |
| Power supply | AC220V±10% (standard) or AC110V±10% (optional) |
| External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication |
| Pump head | Model | Max Speed | Tube Mode(ID* Wall thickness)mm |
||||||
| 13# (0.8*1.6) |
14# (1.6*1.6) |
19# (2.4*1.6) |
16# (3.1*1.6) |
25# (4.8*1.6) |
17# (6.4*1.6) |
18# (7.9*1.6) |
|||
| YZ1515X | BT600FC |
600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 |
| YZ15m | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 | |
| YZ15ma | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 | |
| 15#(4.8*2.4) | 24#(6.4*2.4) | ||||||||
| YZ2515X | BT600FC | 600 | 1020 | 1740 | |||||
| 14#（1.6*1.6） | 16#（3.1*1.6） | 25#（4.8*1.6） | |||||||
| ZN15 | BT600FC | 600 | 162 | 492 | 1020 | ||||
| 24#(6.4*2.4) | |||||||||
| ZN25 | BT600FC | 600 | 1740 | ||||||
