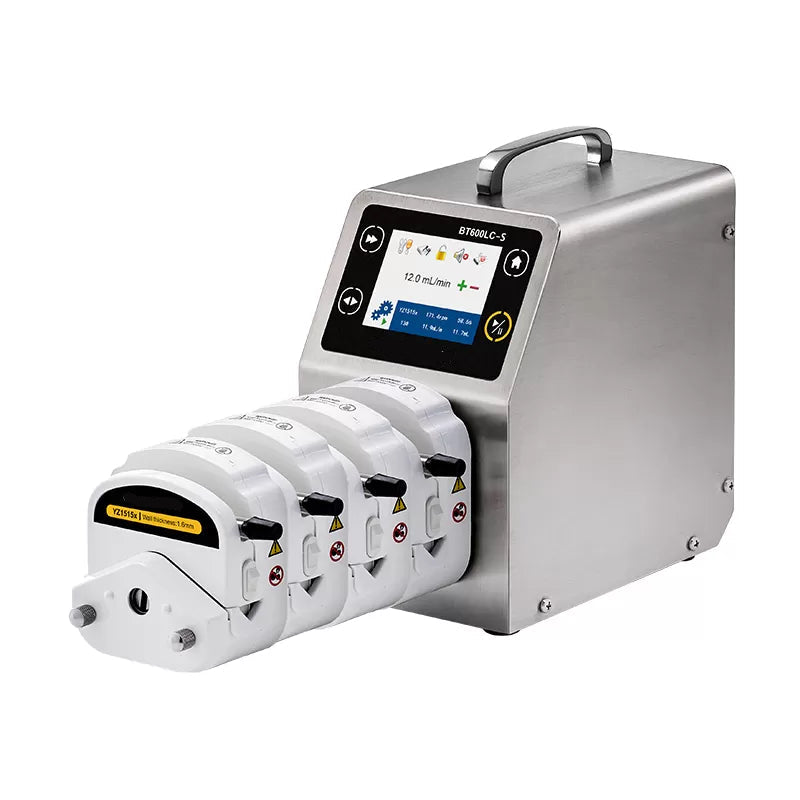

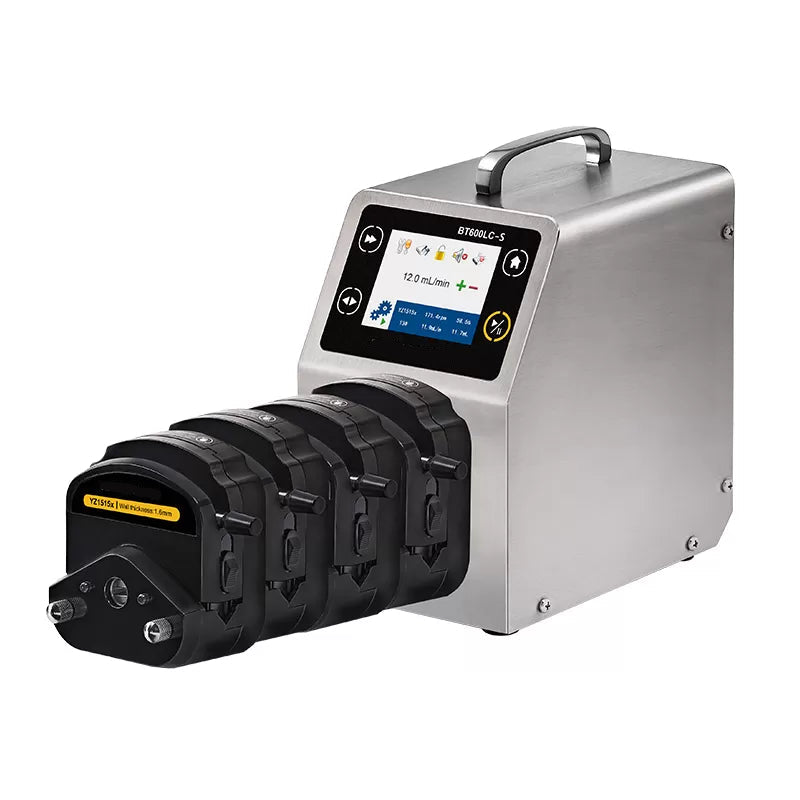

BT600LC-S Four Channel Peristaltic Pump YZ1515X Pump Head
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.
BT600LC-S multi-channel peristaltic pump with 4 YZ1515X pump heads. The flow range is 0.007-2280ml/min/channel. LCD and touch screen. Easy flow rate control. The BT600LC-S peristaltic dosing pump has four working modes: constantly transferring, timing mode, quantitative mode and quantitative mode. Memory function is also available in the product in case of power off. FULL SPEED button available for filling in & emptying out. Good capability price rate. Not suitable when used in the open air.
Advantages:
1. With liquid calibration function to ensure the high accuracy liquid transfer.
2. With both-way large torque high power motor. It can be connected with several pump heads to meet different flow rates.
3. Long life can only touch screen, easy operation, high control precision, ensure the transmission of high precision fluid
4. FULL SPEED button is available to fill in & empty out the tubing.
5. Memory function available in case of power off and it will continue working once the power is restarted.
6. Long-range control is available through the DB15 interface of the drive: speed control start-stop control direction control.
7. With RS485 communication interface supports the MODBUS communication protocol. And communication protocols customized are available.
Applications:
BT600L-S Four-channel peristaltic pumps are used for laboratory chemical dosing and transferring, leaching pumps, mining flotation, solvent extraction pumps and wide industries.
| Model | BT600LC-S | Display Mode | Color LCD display |
| Speed Range | 0.1-600 rpm | Control Method | button |
| speed resolution | 0.1 rpm | Motor Type | Stepper motor |
| Flow range | 0.007—2280ml/min/channel | External control Start & stop, direction control, speed control ( Analog control :0-5v, 0-10v, 4-20mA optionl ) RS232 and RS485 Communication interface, support MODUBUS Communication Protocol |
|
| Environment Temperature | 0-40℃ | ||
| Relatively Humidity | <80% | ||
| Power consumption | <50W | ||
| Power supply | AC220V or AC110V | ||
| Pump Head | Tube | ID(mm) | Wall thickness(mm) | Speed(rpm) | Flow Rate(ml/min) |
| YZ1515X | 13# | 0.8 | 1.6 | 0.1-600 | 0.007-42 |
| 14# | 1.6 | 1.6 | 0.1-600 | 0.027-162 | |
| 19# | 2.4 | 1.6 | 0.1-600 | 0.051-306 | |
| 16# | 3.1 | 1.6 | 0.1-600 | 0.082-492 | |
| 25# | 4.8 | 1.6 | 0.1-600 | 0.17-1020 | |
| 17# | 6.4 | 1.6 | 0.1-600 | 0.29-1740 | |
| 18# | 7.9 | 1.6 | 0.1-600 | 0.38-2280 |
