- Flow Rate: 28mL/min
- Speed: 100 rpm
- BW100 Lab Peristaltic Pump adopts a stepper motor.
- It is used for Lab research and medical sampling.
- This lab peristaltic pump is used for Microfluid transfer. Continuous flow run.

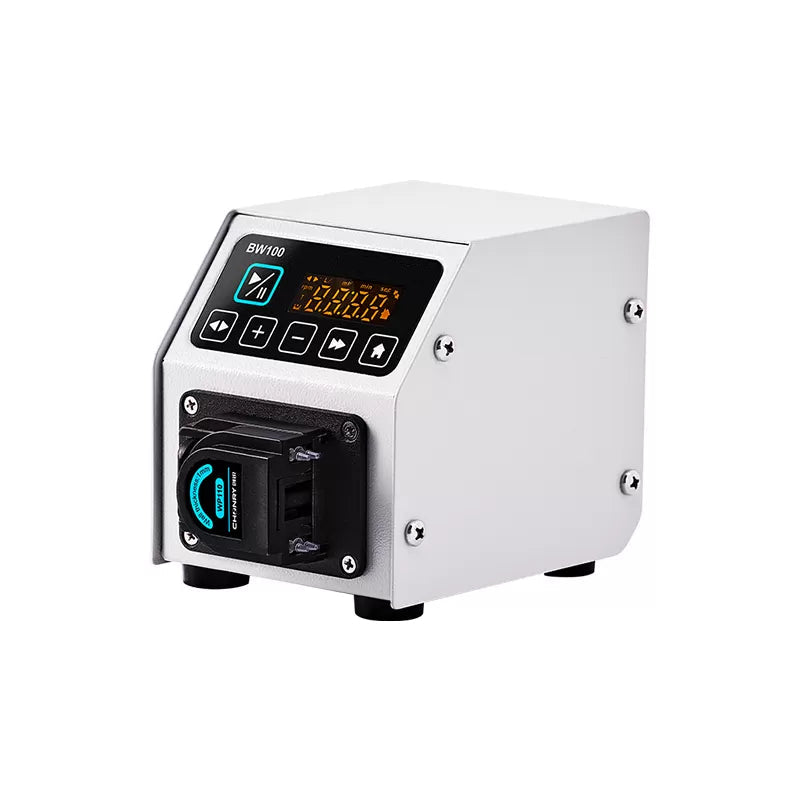

BW100 micro peristaltic pump adopts a stepper motor. It is a small and low-flow peristaltic pump. The flow rate is 28mL/min. BW100 peristaltic flow rate pump is mainly used for Lab research, medical sampling, bioreactors, etc. It adopts an LED four-digit display, membrane key control, compact structure, and stable transmission. BW100 often selects the WP110 pump heads that support single or double channels for different work requirements. Supports RS485 MODBUS communication protocol, and meets the requirements of different work needs of customers.
Features:

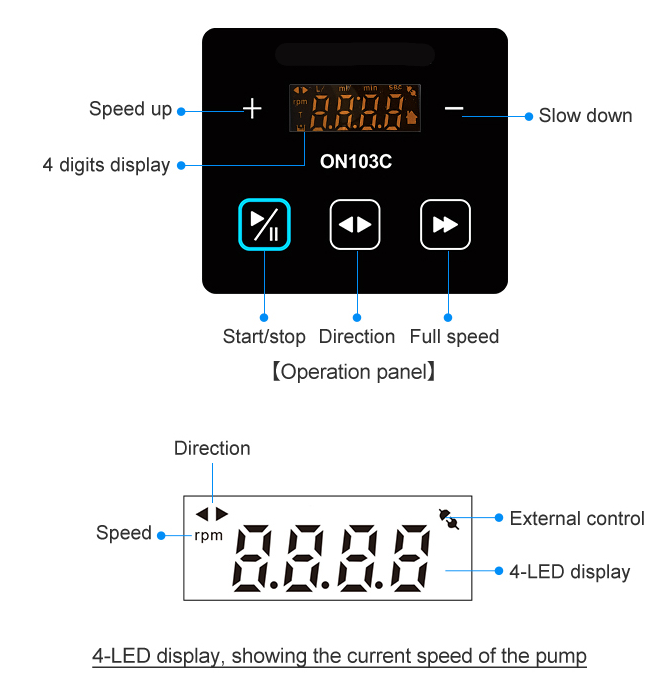

- LED digital display: 4-digit LED digital display speed and flow, With flow calibration function.
- Easy to operate: Button to adjust parameters, can run forward and reverse, easy to operate.
- Power off save: This can automatically save the control parameters when the last power fails.
- One key full speed: Features a convenient full-speed button for quickly filling or emptying the tube.
- External control function: Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs.
- Flow calibration: Flow calibration is possible, and suction is provided to prevent liquid dripping. Increase the accuracy.
Application

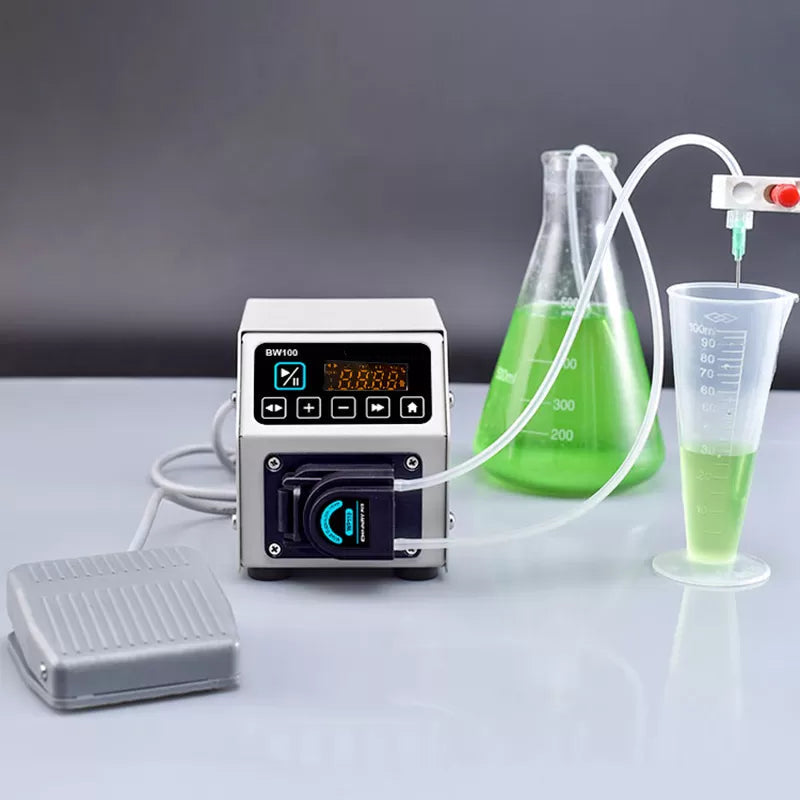

The BW100 laboratory peristaltic pump is a hot product for constant liquid flow. It can be used in laboratory research, chromatography, COD water treatment, medical sampling, etc.
| Drive model | BW100 Lab Peristaltic Pump MicroFluid Transfer Pump |
| Max speed | 100rpm（reversible） |
| Speed resolution | 0.1rpm |
| Max flow | 28mL/min |
| Pump head | WP110 |
| Speed mode | Membrane button to adjust the speed |
| Display method | Four-digit LED displays the current speed or flow |
| Suction speed | 10-100rpm |
| Power | ＜22W |
| Drive size | 120x100x108 mm |
| Power supply | AC220V±10% (standard) or AC110V±10% (optional) |
| External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication |
| Pump Head | Model | Roller | Tube | ID*wall thickness（mm） | Max Speed（rpm） | Max Flow（ml/min） |
| BW100 | WP110 | 3 | 1*1 | 1*1 | 100 | 5 |
| 2*1 | 2*1 | 100 | 17 | |||
| 2.5*1 | 2.5*1 | 100 | 28 | |||
| 4 | 1*1 | 1*1 | 100 | 4 | ||
| 2*1 | 2*1 | 100 | 12 | |||
| 2.5*1 | 2.5*1 | 100 | 24 | |||
| 6 | 1*1 | 1*1 | 100 | 3 | ||
| 2*1 | 2*1 | 100 | 13 | |||
| 2.5*1 | 2.5*1 | 100 | 17 |
