Flow Rate: 2800-33000mL/min

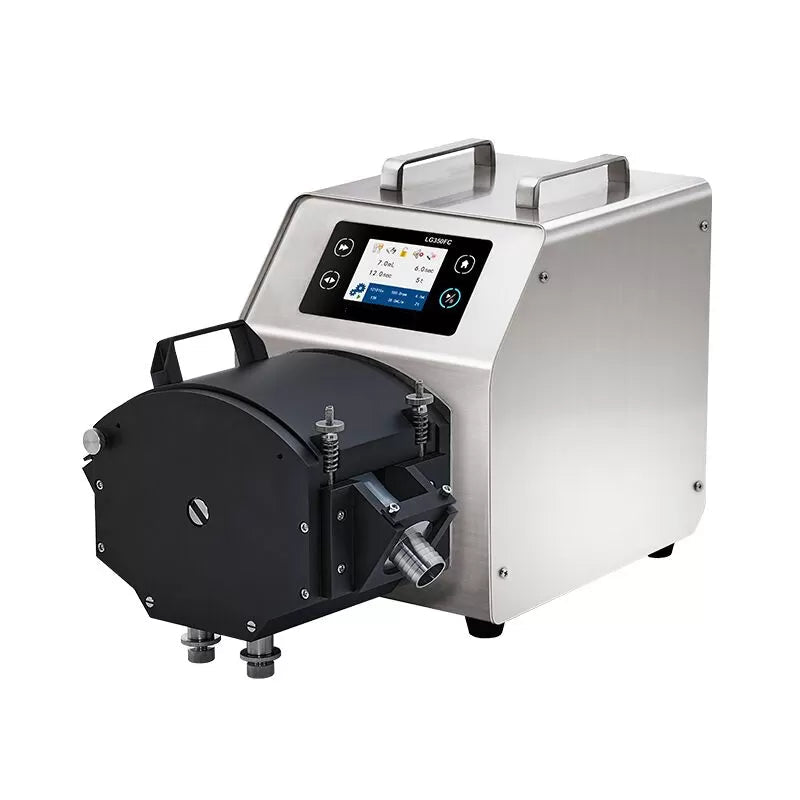

LG350FC is a type of industrial peristaltic pump with a high volume and dispensing peristaltic dosing pump.
LG350FC is a type of industrial peristaltic pump with a high volume and dispensing peristaltic dosing pump. It adopts a 3.5-inch color LCD touchscreen display. The operation is simple and intuitive. It has two working modes of transmission and distribution. It can be intelligently set according to different work needs. The motor torque is strong, and suitable for the KZ50 pump. The maximum flow can reach 33L, and it supports various remote control modes such as RS485/MODBUS.
Specification
• 3.5-inch color LCD, Chinese and English display, touch screen control. It has two working modes of transmission and dispensing, and can perform repeated timing and quantitative filling.
• Can automatically save the control parameters when the last power fails.
• Compatible with the KZ50 pump head, the maximum transmission flow can reach 33L/min.
• 9 sets of data can be stored for users.
• Support RS485/MODBUS communication protocol, analog control, foot switch control.
Application

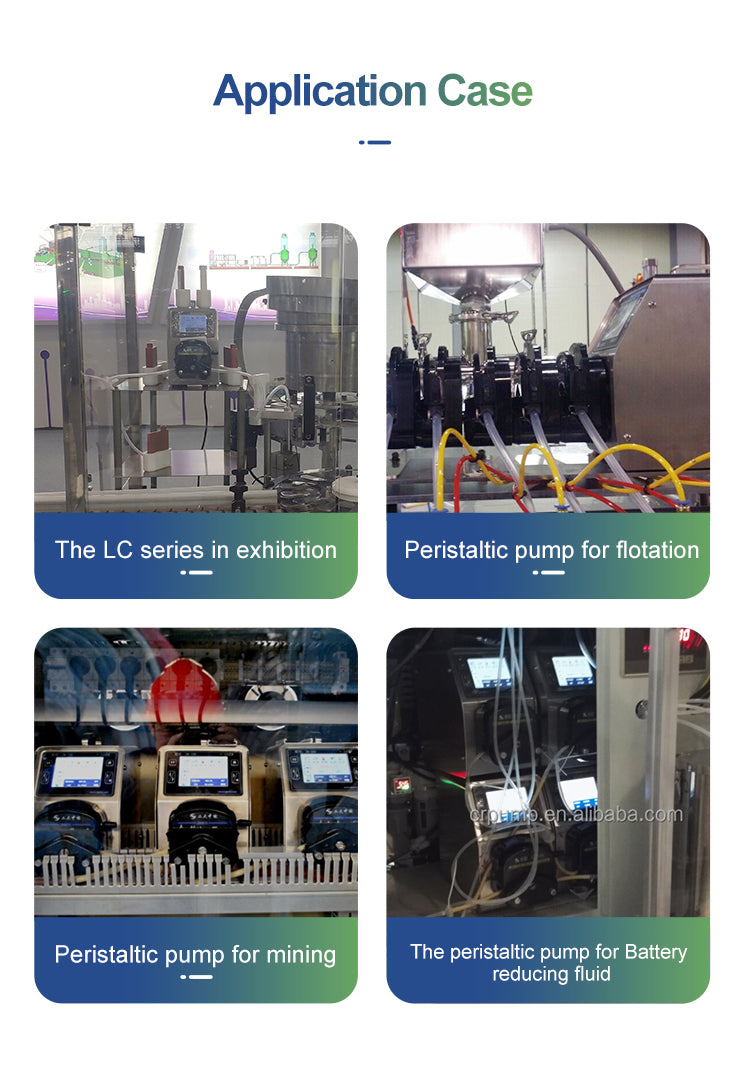

Used in food industry, fluidized bed liquid supply, liquid medicine filtration, photovoltaic, chemical industry and other fields
| Drive model | LG350FC |
| Max speed | 350rpm (reversible) |
| Max flow | 33000mL/min |
| Speed resolution | 0.1rpm |
| Speed mode | Touch screen adjustment |
| Display method | Color LCD display |
| Suction angle | 10°-720° |
| Suction speed | 10-300rpm |
| Power supply | AC220+10% or AC110V+10% or 180V-230V |
| Power | <750W |
| External control interface | DB-15 |
| External control method | Start control/direction control/speed control (0-5V. 0-10V, 4-20mA optional) RS485 serial communication |
| Ambient temperature | 0-40℃ |
| Drive size | 340X242X342.5(mm) |
| Protection class | IP31 (indoor use, avoid prolonged exposure to UV rays) |
| Pump Head | Model | Hose | ID（mm） | Wall Thickness（mm） | Max Flow(ml/min) | Max Speed(rpm) |
| KZ50 | LG350FC | 92# | 25.4 | 4.8 | 33000 | 350 |
| KZ50-SS | LG350FC | 92# | 25.4 | 4.8 | 33000 | 350 |
