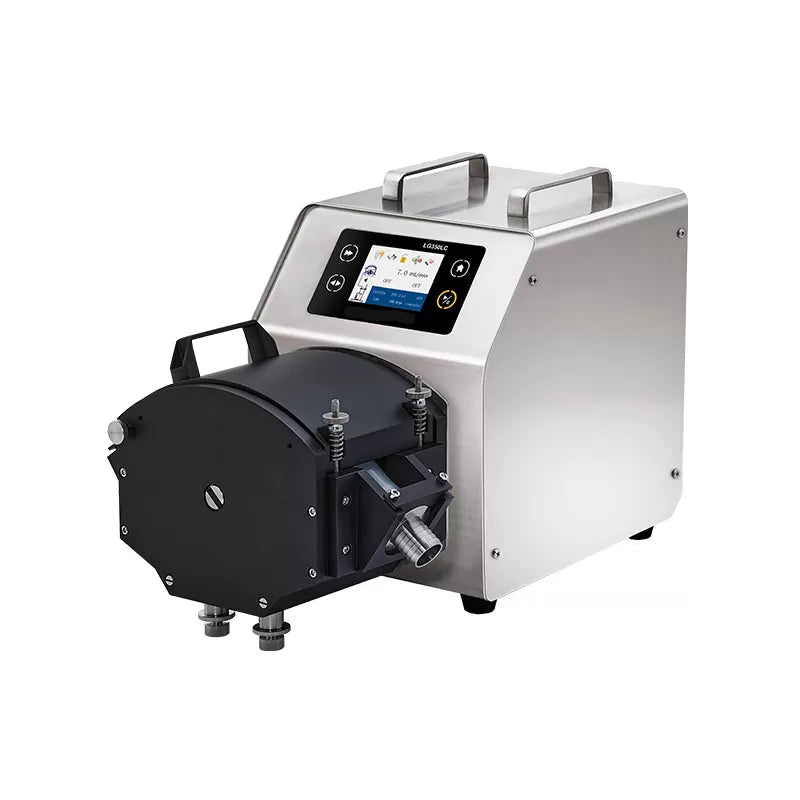

LG350LC is a large-flow industrial peristaltic pump. The flow rate is from 2800 to 33000mL/min. It can be loaded with the KZ50 pump heads. It adopts a 3.5-inch screen. Easy touch operation. The shell is stainless, with corrosion and high-temperature resistance. Supporting various remote control modes such as RS485/MODBUS.Widely used for food and beverage dispensing and filling and mining industry.
Specification
• 3.5-inch color LCD, touch screen control. It has two working modes of transmission and distribution, and can perform repeated timing and quantitative filling.
• Can automatically save the control parameters when the last power failure.
• Compatible with KZ50 pump head, the maximum transmission flow can reach 33L/min.
• 9 sets of data can be stored for users.
• Support RS485/MODBUS communication protocol, analog control, foot switch control.
Application
Used in food industry, fluidized bed liquid supply, liquid medicine filtration, photovoltaic, chemical industry and other fields
| Drive model | LG350LC |
| Max speed | 350rpm (reversible) |
| Max flow | 33000mL/min |
| Speed resolution | 0.1rpm |
| Speed mode | Touch screen adjustment |
| Display method | Color LCD |
| Timing range | 0.1s-9999min |
| Quantitative range | 0.001mL-9999L |
| Back suction angle | 10°-720°(0° means no back suction) |
| Back suction speed | 10-300rpm |
| Power | <750W |
| Drive size | 368X242X342.5(mm) |
| Drive Weight | 27kg |
| Power supply | AC220+10% (Standard) orAC110V+10% (optional) |
| External control interface | DB-15 |
| External control method | Start control/direction control/speed control (0-5V. 0-10V, 4-20mA optional) RS485 serial communication |
| Ambient temperature | 0-40℃ |
| Protection class |
IP31 (indoor use, avoid prolonged exposure to UV rays) |
| Pump Head | Model | Hose | ID（mm） | Wall Thickness（mm） | Max Flow(ml/min) | Max Speed(rpm) |
| KZ50 | LG350LC | 92# | 25.4 | 4.8 | 33000 | 350 |
| KZ50-SS | LG350LC | 92# | 25.4 | 4.8 | 33000 | 350 |
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
