Nine-Cartridge Liquid Filter Housing
Regular price
$2,395.00
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.

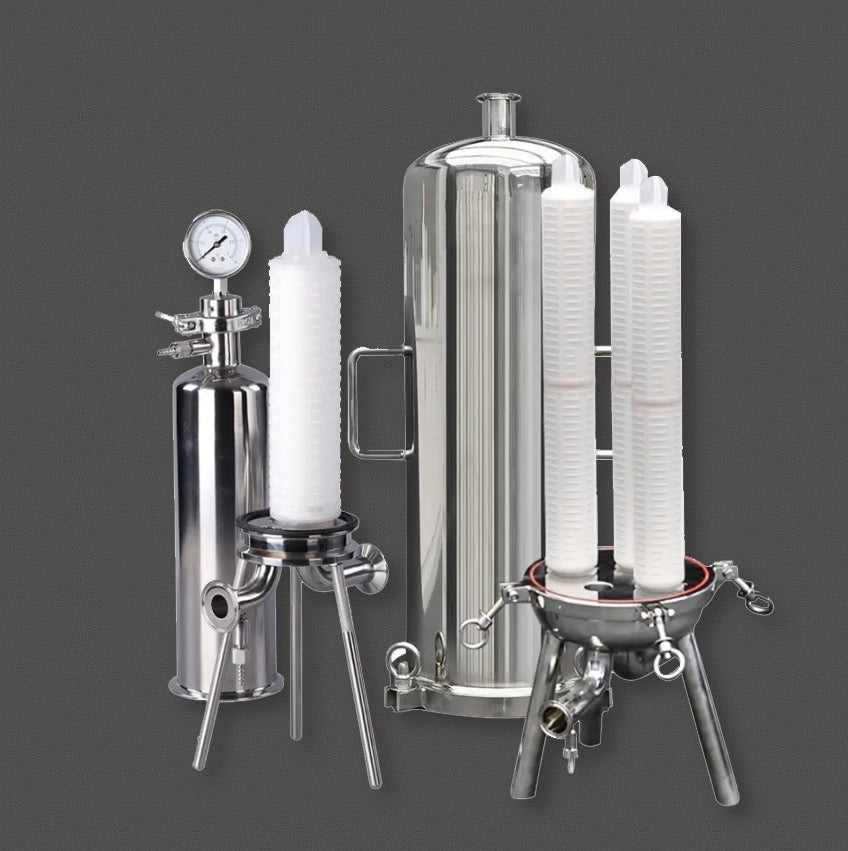

Liquid filter housing made of SUS304 or SUS316L stainless steel, equipped with a pleated filter cartridge as the filter element, can be used for liquid and gas filtration. It features fast filtration speed, minimal adsorption, no media falling off, no leakage, acid and alkali resistance, corrosion resistance, easy cleaning, and back-washing capability. These are ideal filtration devices for industries such as biomedicine, electronics, brewing, beverages, chemicals, and water treatment.
Features:
- Small size, lightweight, and easy to use.
- Low plugging rate, rapid filtration, pollution-free, with good thermal and chemical stability.-
- Internal and external surfaces are mirror-polished to meet sanitary standards.
- The filter socket is made with precision boring, allowing for accurate and quick installation of the filter element.
Technical Parameters:
- Design pressure: 0.6/0.8/1.0 MPa.
- Design temperature: 5°C to 130°C.
- Sealed type: O-ring or flat gasket.
- Interface options include GB, HG, DIN, ANSI, JIS standard flange, thread, Tri clamp, among others.
- Applicable filters include flat, thread, 222 & 226 filters, etc.
- Materials include SS304, 316L, and carbon steel-lined rubber.
| Working pressure | 0.6Mpa/1.0Mpa |
|---|---|
| Sterilization | online high temperature 120℃/30 minutes |
| Sealing ring/gasket | Silicone, Fluorine, EPDM |
| Polishing type | Bright polishing/Sand blasting |
| Polishing accuracy | inner0.3um/outer 0.4um |
| Max working temp | 130℃ |
| Housing Shell Material | SS304/SS316L |
