OI602RH Industrial Peristaltic Pump 4.5L/min Flow IP65
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.

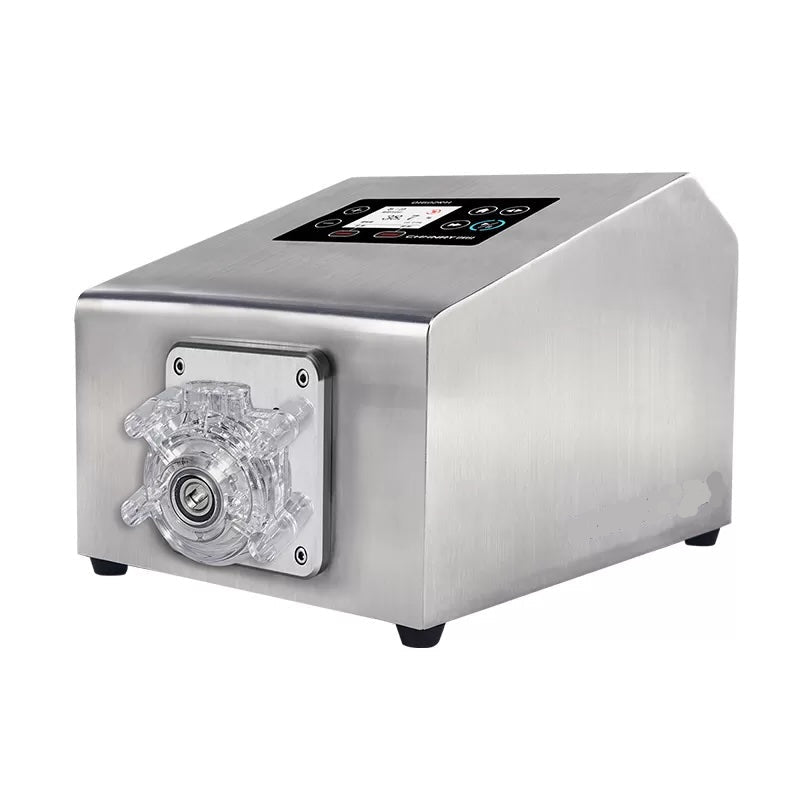

OI602RH Laboratory peristaltic pump with high protection grade IP65. Good electromagnetic compatibility. The shell of OI602RH lab peristaltic pump is made of 304 stainless steel which is durable and corrosion-resistant. Featuring high production grade. It is suitable for humid and dusty environments. Multi pump heads options, and support multi channels to cover any applications. It can used for liquid transferring and filling. Continuous flow run.
OI602RH Laboratory Peristaltic Pump Advantages
- The shell is made of 304 stainless steel, which is solid, durable and corrosion-resistant.
- It has good electromagnetic compatibility and will not be disturbed by the electromagnetic environment.
- The protection level reaches IP65, which is suitable for humid and dusty working environments.
- It can be installed with YZ, DG, and series pump heads, and the pump heads can be cascaded.
- The color LCD screen displays the operating status in real-time. Easy operation and easy parameter setting and calibration.
- Start and stop control, direction control, RS485 communication, speed control (0-5V, 0-10V, 4-20mA, 0-10KHz)
Applications:
OI602RH Peristaltic pump with high production grade. It can work stably in humid, dusty and severely electromagnetically interfered industrial environments.
It is widely used in laboratories, pharmaceuticals, cell cultures, mining, environmental monitoring, water treatment, chemical industry.
| Drive Model | OI602RH Lab Peristaltic Pump IP65 Precision Liquid Control |
| Max speed | 600rpm(Reversible) |
| Max Flow | 4560ml/min |
| Speed resolution | 0.1rpm |
| Display Method | Color LCD display |
| Speed Mode | Membrane button adjustment |
| Back suction angle | 0°~720°（0° means no back suction） |
| Back suction speed | 0-600rpm |
| Power | ＜200W |
| Drive size | 278X200X197mm |
| Drive weight | 5.5kg |
| Power supply | AC100-240V，50Hz/60Hz |
| External control interface | Aviation socket |
| External control method | Start-stop control, direction control, RS485 communication, speed control (0-5V, 0-10V, 4-20mA, 0-10KHz) |
| Ambient Temperature | 0~40℃ |
| Protection Level | IP65 |
| Model | Pump Head | Tube | ID(mm) | Wall thickness (mm) | Max Speed (rpm) | Max Flow(mL/min) | Suitable Tube Material |
| OI602RH |
YZ1515X YZ15m |
13# | 0.8 | 1.6 | 600 | 42 |
Silicone tube Pharmed tube Chemical tube |
| 14# | 1.6 | 1.6 | 600 | 162 | |||
| 19# | 2.4 | 1.6 | 600 | 306 | |||
| 16# | 3.1 | 1.6 | 600 | 492 | |||
| 25# | 4.8 | 1.6 | 600 | 1020 | |||
| 17# | 6.4 | 1.6 | 600 | 1740 | |||
| 18# | 7.9 | 1.6 | 600 | 2280 | |||

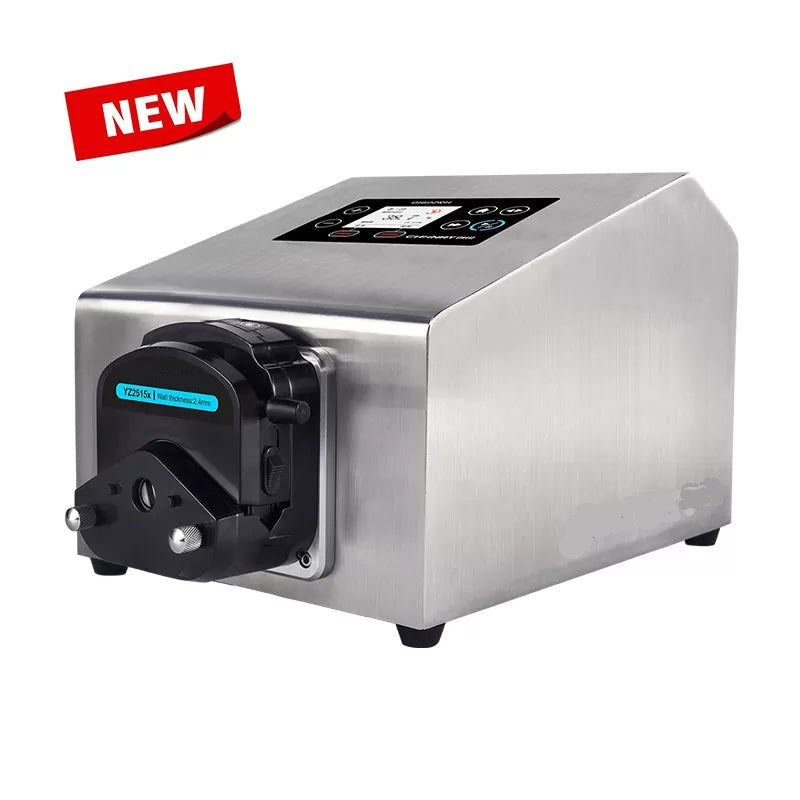

| OI602RH | YZ2525X | 15# | 4.8 | 2.4 | 600 | 1020 |
Silicone tube Pharmed tube Chemical tube |
| 24# | 6.4 | 2.4 | 600 | 1740 | |||
| OI602RH | YZ25m | 15# | 4.8 | 2.4 | 600 | 1020 |
Silicone tube Pharmed tube Chemical tube(35#,36# not recommended) |
| 24# | 6.4 | 2.4 | 600 | 1740 | |||
| 35# | 7.9 | 2.4 | 600 | 2280 | |||
| 36# | 9.6 | 2.4 | 600 | 3000 | |||

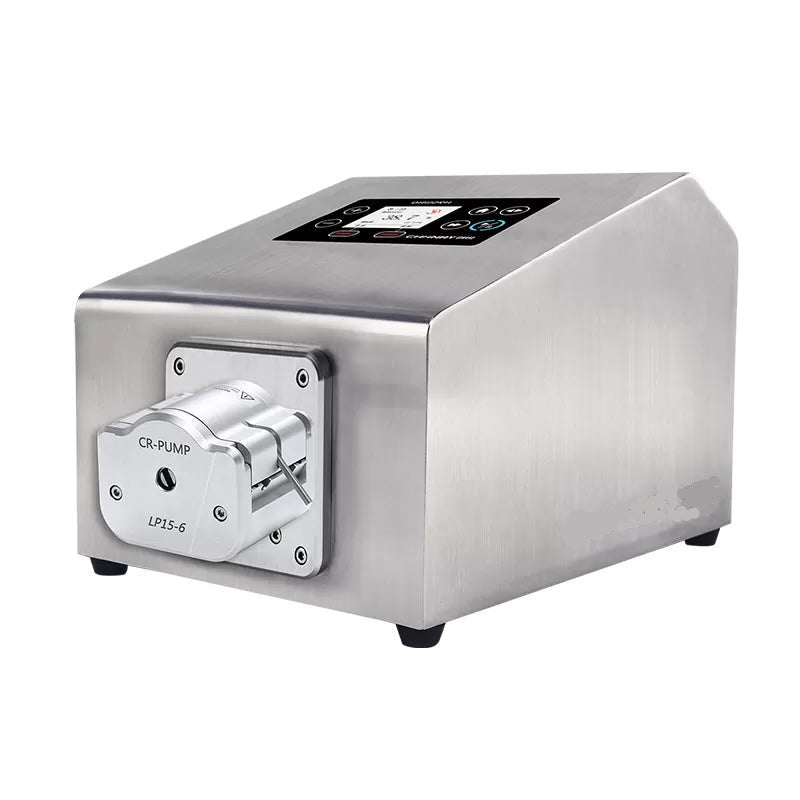

| OI602RH | LP15-6 | 13# | 0.8 | 1.6 | 600 | 84 |
Silicone tube Pharmed tube Chemical tube(17#,18# not recommended) |
| 14# | 1.6 | 1.6 | 600 | 324 | |||
| 19# | 2.4 | 1.6 | 600 | 612 | |||
| 16# | 3.1 | 1.6 | 600 | 984 | |||
| 25# | 4.8 | 1.6 | 600 | 2040 | |||
| 17# | 6.4 | 1.6 | 600 | 3480 | |||
| 18# | 7.9 | 1.6 | 600 | 4560 | |||
| OI602RH | ZN15 | 14# | 1.6 | 1.6 | 600 | 162 |
Silicone tube Pharmed tube Chemical tube |
| 16# | 3.1 | 1.6 | 600 | 492 | |||
| 25# | 4.8 | 1.6 | 600 | 1020 | |||
| OI602RH | ZN25 | 24# | 6.4 | 2.4 | 600 | 1740 | |
| OI602RH | DG(6)-4 | 1*1 | 1 | 1 | 100 | 6 |
Silicone tube Pharmed tube
|
| 2*1 | 2 | 1 | 100 | 19 | |||
| 3*1 | 3 | 1 | 100 | 36 | |||
| 0.5*0.8 | 0.5 | 0.8 | 100 | 2 | |||
| 2.4*0.8 | 2.4 | 0.8 | 100 | 24 | |||
| OI602RH | DG(10)-4 | 1*1 | 1 | 1 | 100 | 4 |
Silicone tube Pharmed tube
|
| 2*1 | 2 | 1 | 100 | 13 | |||
| 3*1 | 3 | 1 | 100 | 27 | |||
| 0.5*0.8 | 0.5 | 0.8 | 100 | 1.5 | |||
| 2.4*0.8 | 2.4 | 0.8 | 100 | 17 |
