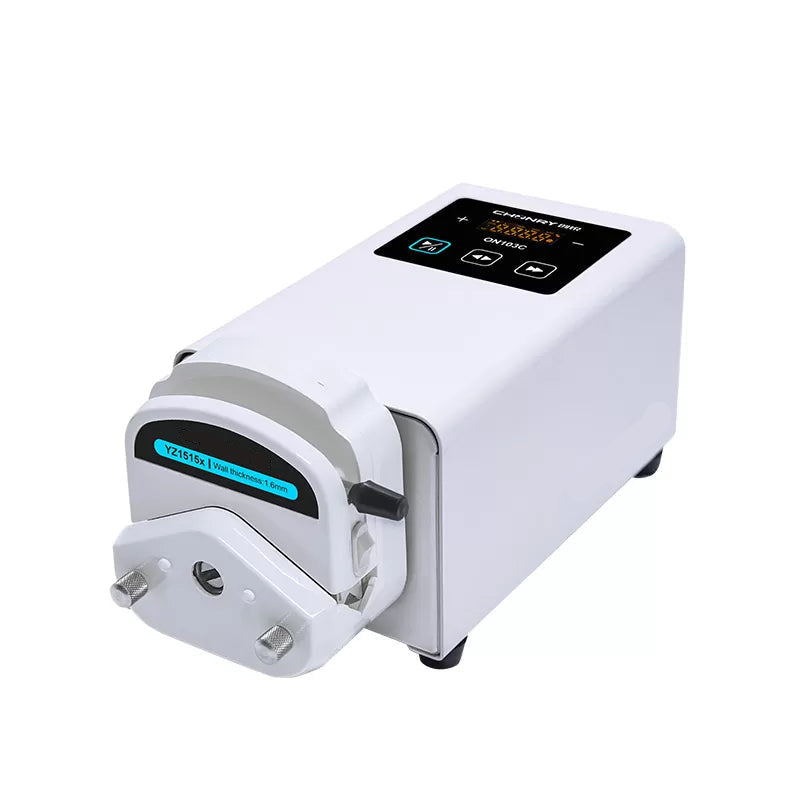

ON103C Bench-top Peristaltic Pump Low Flow Rate
Need a Custom Quote?
Tell us what you need — we’ll respond quickly with pricing and details.
Payment details
Help your customers identify what payments are accepted by your store.
- Max Flow: 380ml/min
- Max Speed:100rpm
- Best peristaltic pump for lab analytics. Used for chemical liquid transfer.

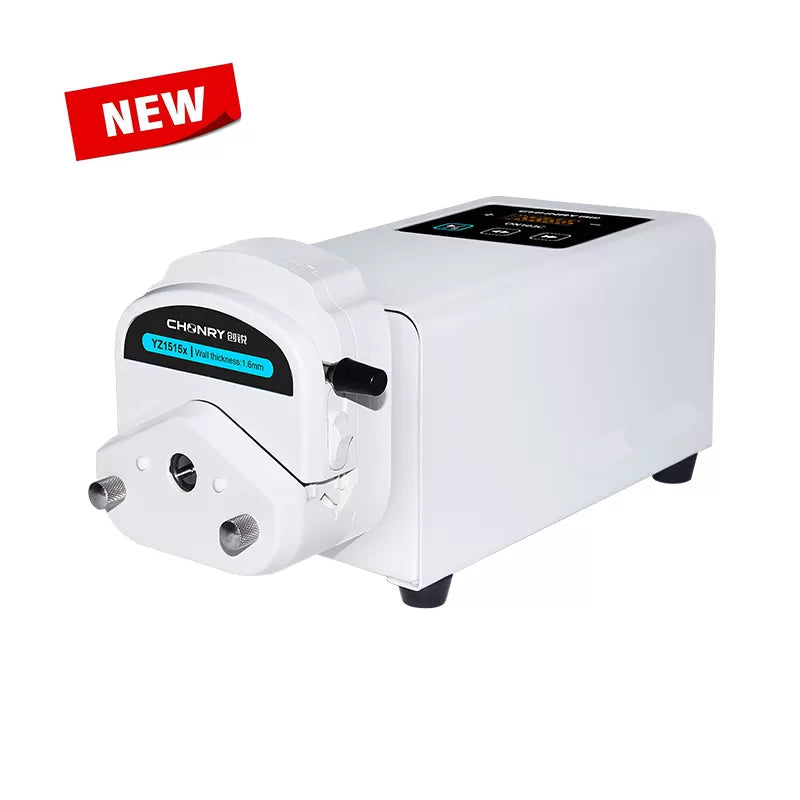

- ON103C is the benchtop peristaltic pump with small size saving space. This pump is a low flow rate peristaltic pump with 380ml/min.
- Easy operation. And low noise operation.
ON103C benchtop peristaltic pump is a medium flow digital transfer peristaltic pump. Compact footprint requiring minimal benchtop space. It adopts key operation, 4-digit LED digital display of current speed. ON103C peristaltic pump has various functions such as power-off save, direction control, one-key full speed, etc. It supports different external controls such as RS485/MODBUS communication protocol. It is suitable for a variety of pump heads such as YZ、DG、ZN series, etc., to meet different work needs. This pump is suitable for laboratory liquid transfer.
Advantages:
Compact Size:
Benchtop peristaltic pumps. Compact and small size for space-saving use.
Beautiful and durable
The surface of the shell adopts an electrostatic anti-corrosive spraying treatment, pearl white. Visually beautiful, delicate touch, anti-corrosion and durable.
Easy to operate

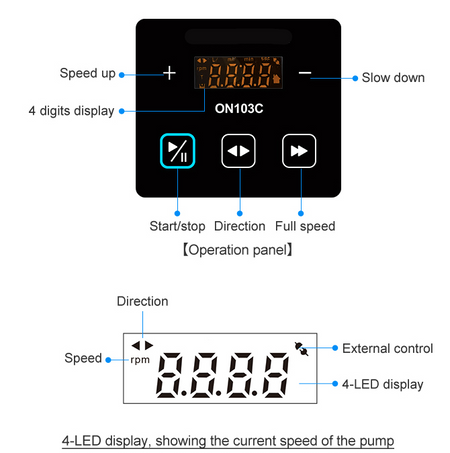

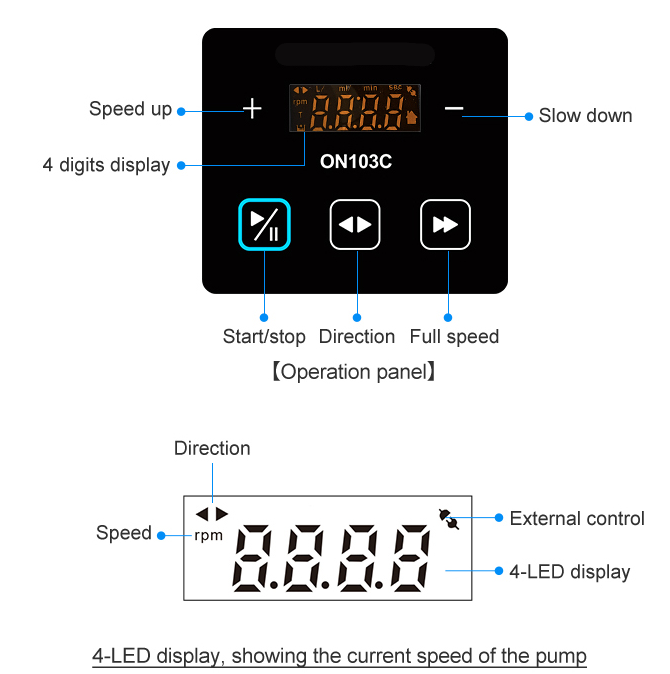

Easy operation with physical buttons for start/stop/direction/rpm control.
Low noise operation
Low noise and vibration during pump operation, experimental environment.
External control function
Support RS485/MODBUS communication protocol, the protocol can also be customized according to user requirements.
Adapt to multiple pump heads
Various pump heads such as YZ, DG, and ZN series pump heads can be installed.
Applications:
It is used for small and medium flow transmission in hydroponics, laboratory, medical sampling, etc.
| Drive model | ON103C |
| Max Speed | 100rpm(reversible) |
| Speed resolution | 0.1rpm |
| Max flow | 380ml/min |
| Speed mode | Membrane key speed |
| Display method | 4-digit LED display current speed or flow |
| Working power | AC 100V-240V, 50Hz/60Hz |
| Power consumption | <20W |
| Drive size | 200X120X110.5(mm) |
| Drive weight | 2.3kg |
| Protection class | IP31 |
| External control interface(the function needs to be customized) | Start/stop control/direction control/speed control (0-5V, 0-10V, 4-20mA, 0-10kHz optional) RS485 serial communication |
| Model | Tube | ID(mm) | Wall thickness(mm) | Max flow(ml/min) | Max speed | Applicable Pharmed Tube |
| YZ1515X | 13# | 0.8 | 1.6 | 7 | 100 | 13#, 14#19#, 16# |
| 14# | 1.6 | 1.6 | 27 | 100 | ||
| 19# | 2.4 | 1.6 | 51 | 100 | ||
| 16# | 3.1 | 1.6 | 82 | 100 | ||
| 25# | 4.8 | 1.6 | 170 | 100 | ||
| 17# | 6.4 | 1.6 | 290 | 100 | ||
| 18# | 7.9 | 1.6 | 380 | 100 | ||
| YZ2515X | 15# | 4.8 | 2.4 | 170 | 100 | Not Recommended |
| 24# | 6.4 | 2.4 | 290 | 100 | ||
| DG-1(6)DG-2(6) | 1*1 | 1 | 1 | 6 | 100 | ID<=3mmWalll thickness:0.8-1.0mm |
| 2*1 | 2 | 1 | 19 | 100 | ||
| 3*1 | 3 | 1 | 36 | 100 | ||
| 0.5*0.8 | 0.5 | 0.8 | 2 | 100 | ||
| 2.4*0.8 | 2.4 | 0.8 | 24 | 100 | ||
| DG-1(10)DG-2(10) | 1*1 | 1 | 1 | 6 | 100 | ID<=3mmWalll thickness:0.8-1.0mm |
| 2*1 | 2 | 1 | 19 | 100 | ||
| 3*1 | 3 | 1 | 36 | 100 | ||
| 0.5*0.8 | 0.5 | 0.8 | 2 | 100 | ||
| 2.4*0.8 | 2.4 | 0.8 | 24 | 100 | ||
| YZ15S-1 | 13# | 0.8 | 1.6 | 4.8 | 100 | Not Recommended |
| 14# | 1.6 | 1.6 | 18 | 100 | ||
| 19# | 2.4 | 1.6 | 38 | 100 | ||
| 16# | 3.1 | 1.6 | 62 | 100 | ||
| 25# | 4.8 | 1.6 | 126 | 100 | ||
| YZ15S-2 | 13# | 0.8 | 1.6 | 4.8 | 100 | Not Recommended |
| 14# | 1.6 | 1.6 | 18 | 100 | ||
| 19# | 2.4 | 1.6 | 38 | 100 | ||
| 16# | 3.1 | 1.6 | 62 | 100 | ||
| ZN15-14 | 14# | 1.6 | 1.6 | 21 | 100 | Not Recommended |
| ZN15-16 | 16# | 3.1 | 1.6 | 82 | 100 | |
| ZN15-25 | 25# | 4.8 | 1.6 | 170 | 100 | |
| ZN15-17 | 17# | 6.4 | 1.6 | 290 | 100 | |
| ZN25-25 | 25# | 6.4 | 2.4 | 294 | 100 | Not Recommended |
