SG600FC is an intelligent distribution peristaltic pump. It adopts a 3.5-inch color LCD touchscreen display. The operation is simple and intuitive. It has two working modes of transmission and distribution. It can be intelligently set according to different work requirements. The motor torque is strong and is suitable for YZ35, YZ35-13L and YZ35LS pump heads. It can store data and support various remote control modes such as RS485/MODBUS. Accepted customized services.
Features：
Multiple modes： It has two working modes of transmission and distribution and can perform repeated timing and quantitative filling.
Suction function： The speed angle of reverse operation can be customized to prevent liquid from dripping.
LCD touch： 3.5-inch color LCD, Chinese and English display, touch screen control.
Data storage： 8 sets of data can be stored for users.

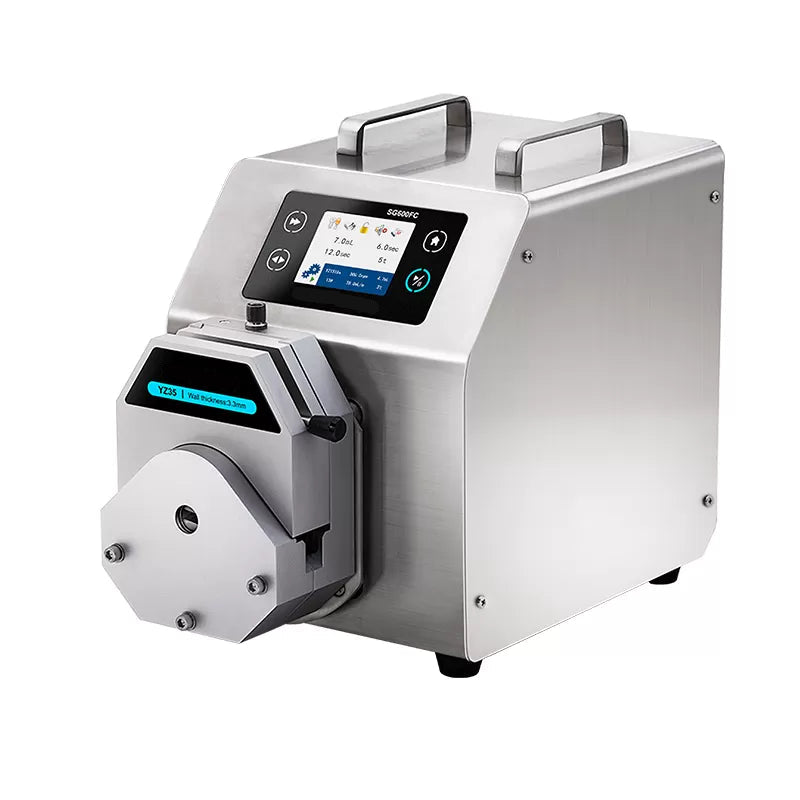

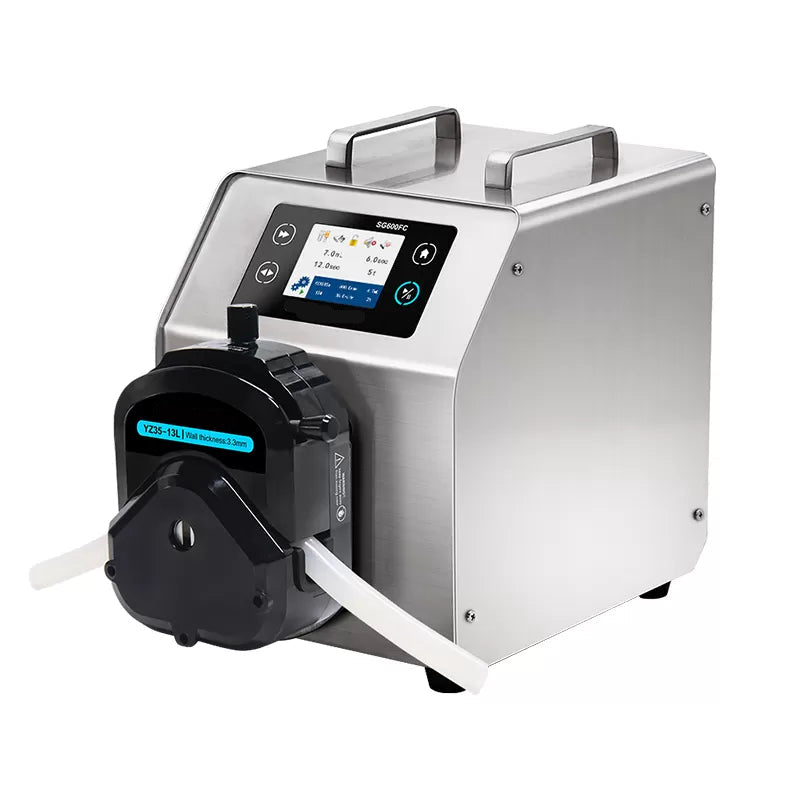

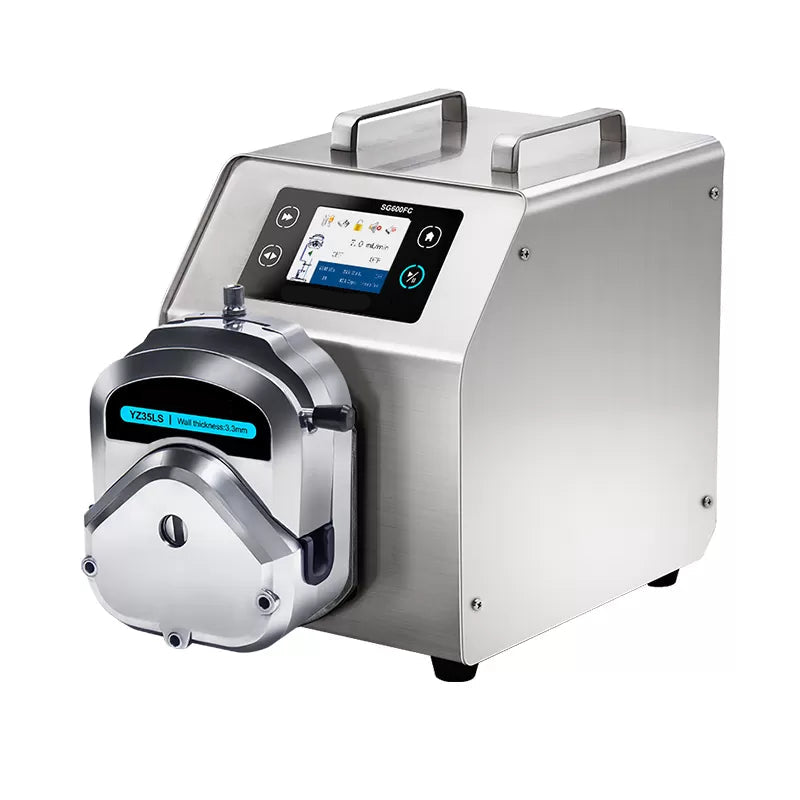

Adapt to multiple pump heads： YZ35, YZ35-13L and YZ35LS pump heads can be installed, and the pump heads can be cascaded.
Support external control： Support RS485/MODBUS communication protocol, analog control, foot switch control.
Drive model: SG600FC
Max Speed: 600rpm (reversible)
Speed resolution: 0.1rpm
Speed mode: Touch screen adjustment
Display method: Color LCD display
Suction angle: 10°-720° (0° means no back suction)
Suction speed: 10-300rpm
Max flow: 12000mL/min
Power supply:AC220V±10% (standard) or AC110V±10% (optional)
Power: ＜400W

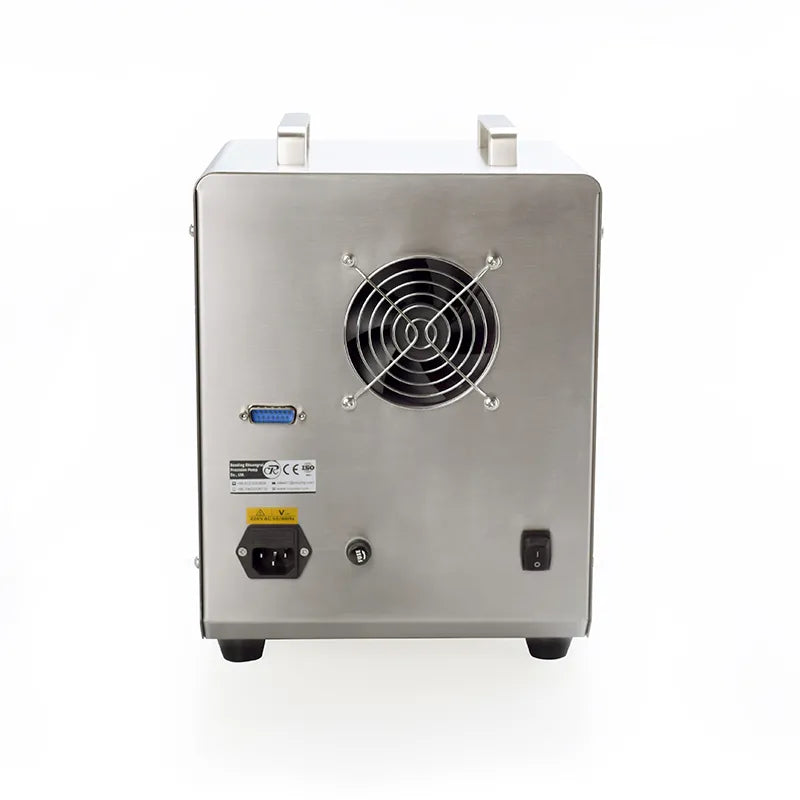

External control interface: DB-15
External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive size: 233X325X427.5(mm)
Protection class: IP31 (indoor use, avoid prolonged exposure to UV rays)
| Pump Head | Model | Hose | ID（mm） | Wall Thickness（mm） | Max Flow(ml/min) | Max Speed(rpm) |
| YZ35 | SG600FC | 73# | 9.6 | 3.3 | 7400 | 600 |
| 82# | 12.7 | 3.3 | 12000 | |||
| YZ35-13L | SG600FC | 73# | 9.6 | 3.3 | 7400 | 600 |
| 82# | 12.7 | 3.3 | 12000 | |||
| YZ35LS | SG600FC | 73# | 9.6 | 3.3 | 7400 | 600 |
| 82# | 12.7 | 3.3 | 12000 |
