SG600LC Multichannel Touchscreen Peristaltic Pump

In stock
SKU: SG600LC-YZ35
Regular price $2,457.00

Need a Custom Quote?

Tell us what you need — we’ll respond quickly with pricing and details.

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Help your customers identify what payments are accepted by your store.

SG600LC is a high-flow multichannel peristaltic pump. It is controlled by a 3.5-inch color LCD touch screen, with a Chinese and English operation interface, with flow calibration function. Real-time display of various operating parameters on the screen, easy to use, and provides user data storage. Fast filling, to meet different work requirements, bidirectional high torque, install YZ35, YZ35-13L and YZ35LS pump heads. The SG600LC high flow peristaltic pumps can cascade multiple pump heads and perform liquid volume calibration.  Support RS485/MODBUS communication protocol, provide a variety of external control methods.

Specification

3.5-inch color LCD, Chinese and English display, touch screen control. Simple display.

After setting the target flow, input the actual flow, and the system will automatically calibrate.

The speed angle of reverse operation can be customized to prevent liquid dripping.

Transmission mode, timing mode, quantitative mode, timing quantitative mode.

8 sets of data can be stored for users.

Support RS485/MODBUS communication protocol, analog control, foot switch control.

Application

Used in mining, metallurgy, environmental engineering, chemical industry, water treatment and other fields.

Drive model SG600LC
Max Speed 600rpm (reversible)
Max flow 12000mL/min
Speed resolution 0.1rpm
Speed mode Touch screen adjustment
Display method Color LCD display
Suction angle 10°-720° (0° means no back suction)
Suction speed 10-300rpm
Power supply AC220V±10% (standard) or AC110V±10% (optional)
Power <400W

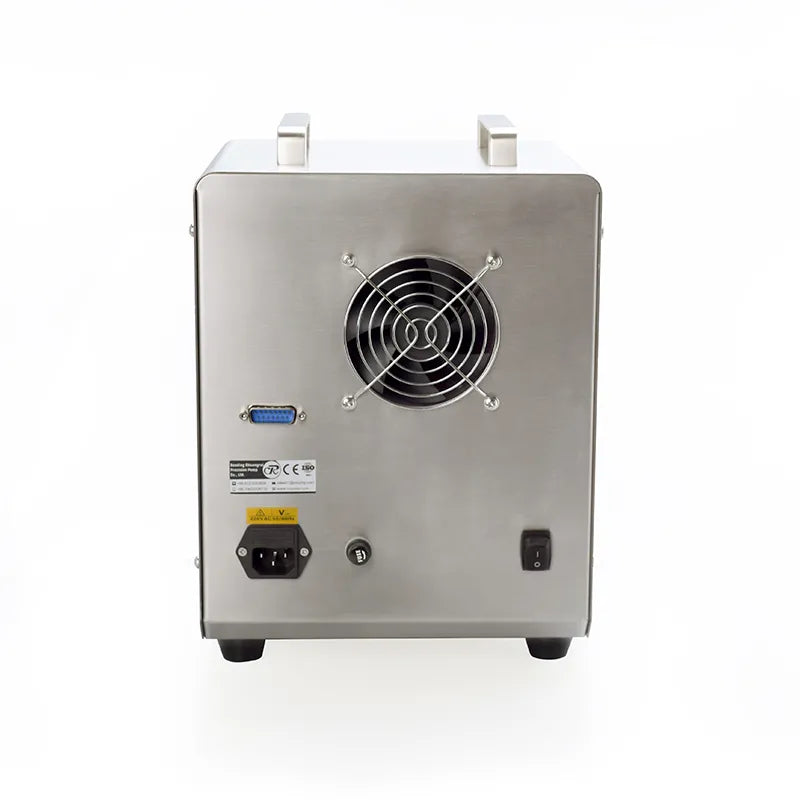

External control interface DB-15
External control method Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive size 233X325X427.5(mm)
Protection class IP31 (indoor use, avoid prolonged exposure to UV rays)
Pump Head Model Hose ID(mm) Wall Thickness(mm) Max Flow(ml/min) Max Speed(rpm)

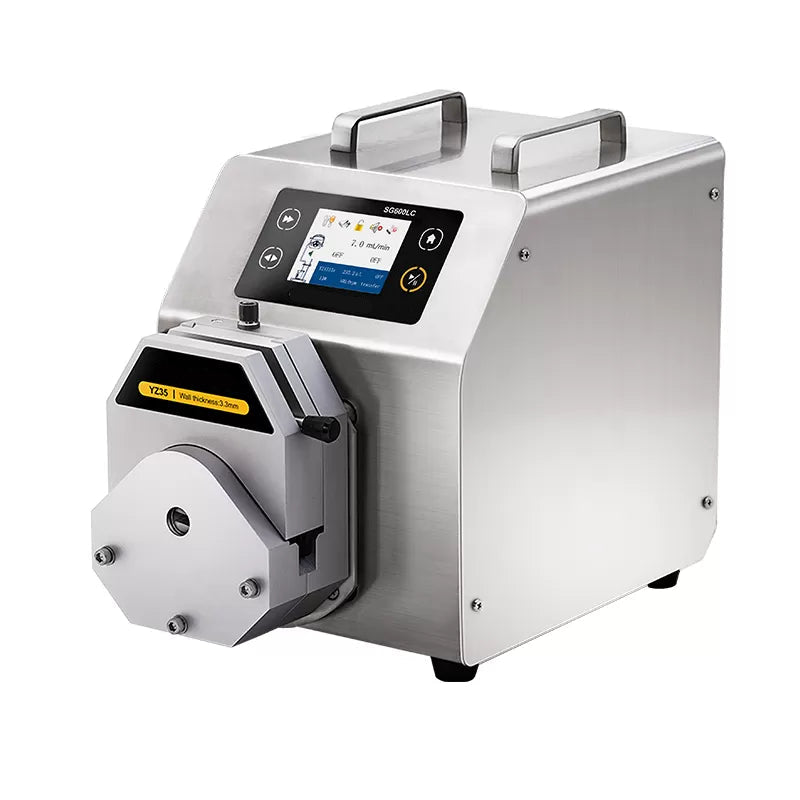

YZ35 SG600LC 73# 9.6 3.3 7400 600
82# 12.7 3.3 12000

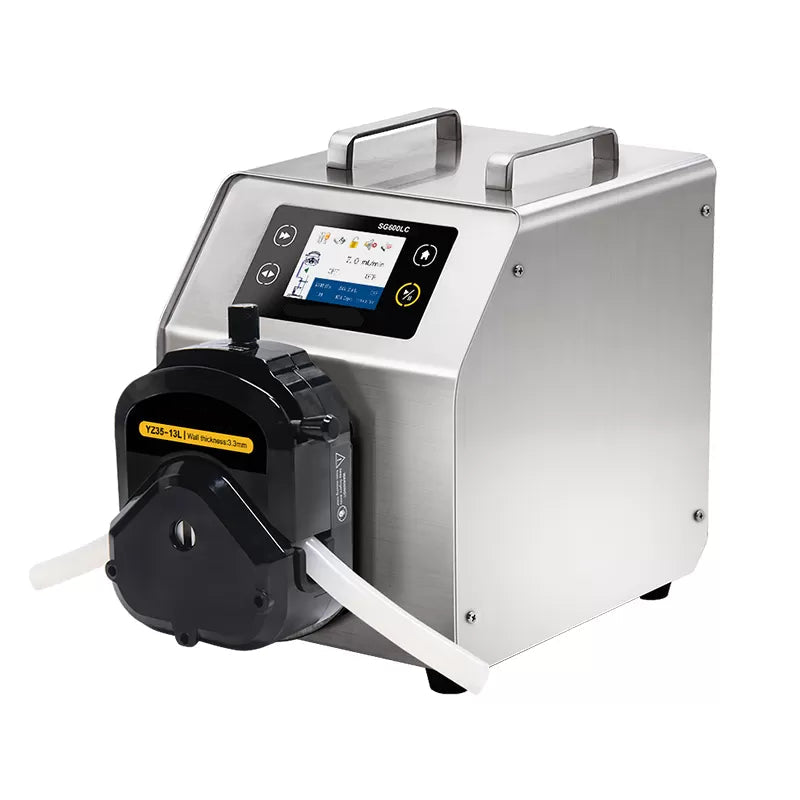

YZ35-13L SG600LC 73# 9.6 3.3 7400 600
82# 12.7 3.3 12000

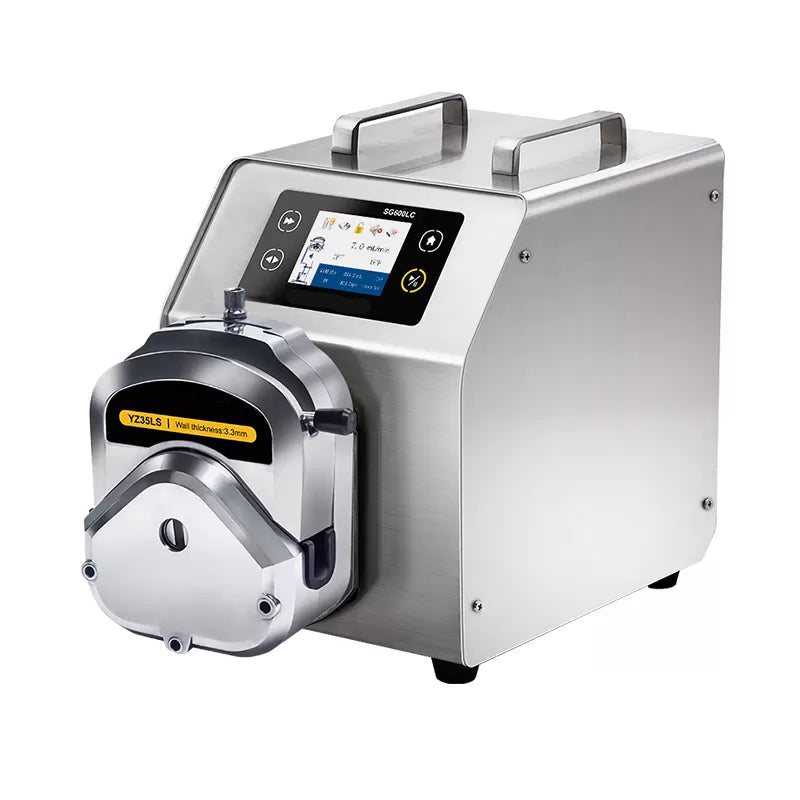

YZ35LS SG600LC 73# 9.6 3.3 7400 600
82# 12.7 3.3 12000

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
