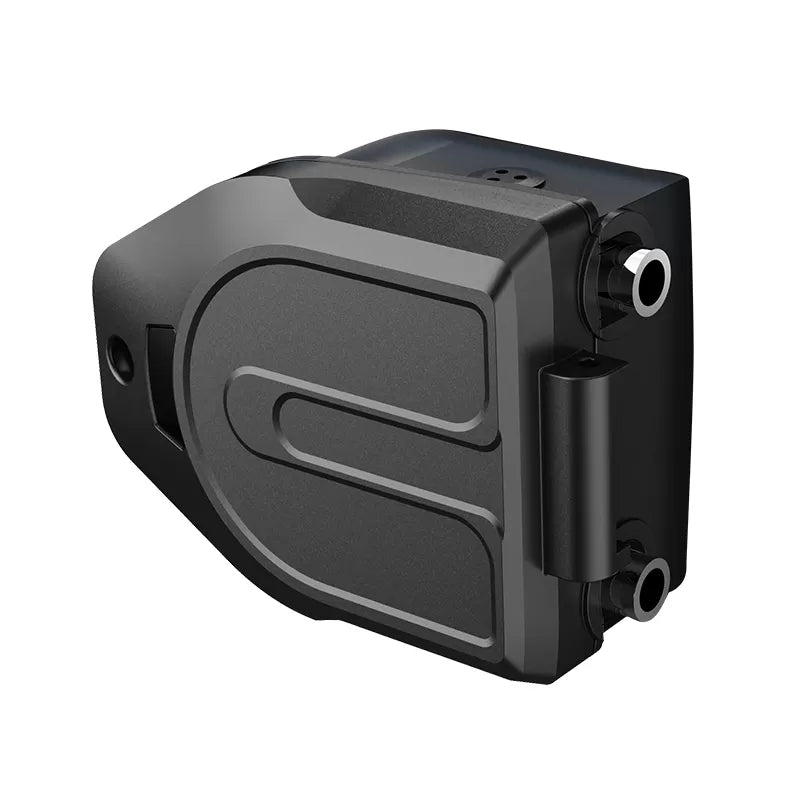

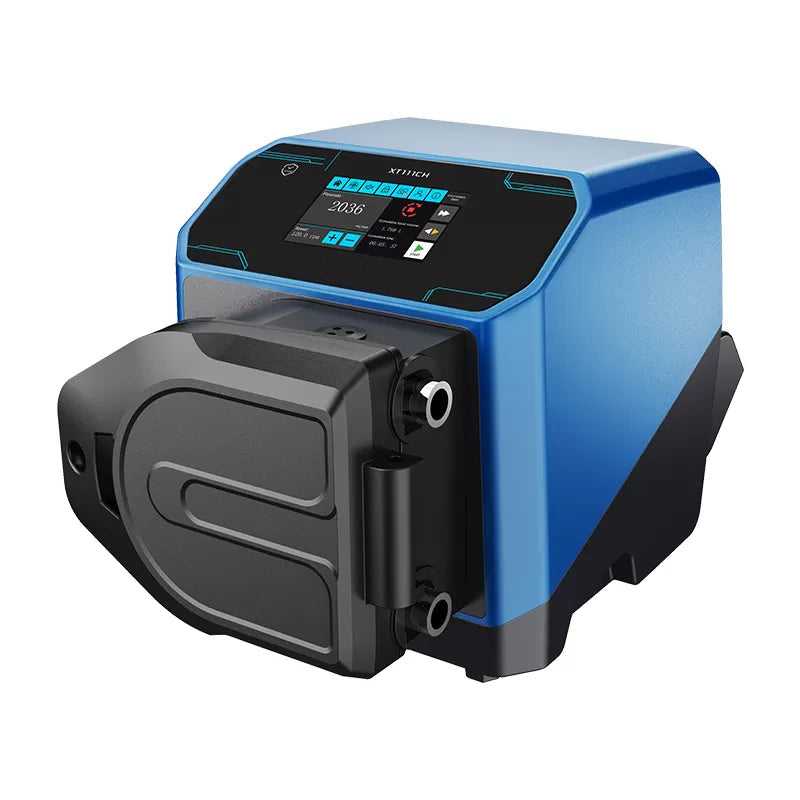

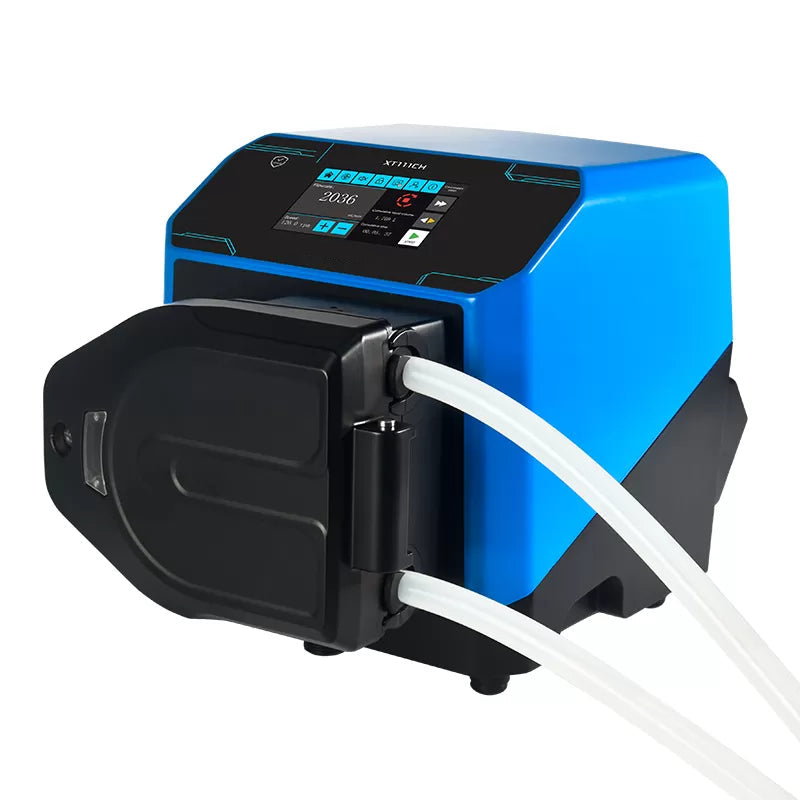

XT111CH Industrial peristaltic pump is a high protection level type with IP66. It is suitable for dust and humidity in industrial working environments. XT111CH industrial peristaltic pump realizes fast high-flow rate liquid conveyance - high flow liquid transmission function. The pump runs continuously at the set flow rate and displays the flow rate and pump speed on the screen. The max flow rate is up to 18L/min, which will save working time. Besides, the XT111CH high-flow peristaltic pump is compatible with multiple pump heads, GY4012RE, GY4014RE, and GY3512R. It is a built-in DP interface. Support Profibus DP communication protocol, easy to connect with other control devices, and it can quickly achieve integrated configuration of automation control systems.
Features:
- IP66 high protection level for wet and dusty working environments
- Die-cast aluminum (surface sprayed) shell, dustproof, moisture-proof, corrosion-resistant.

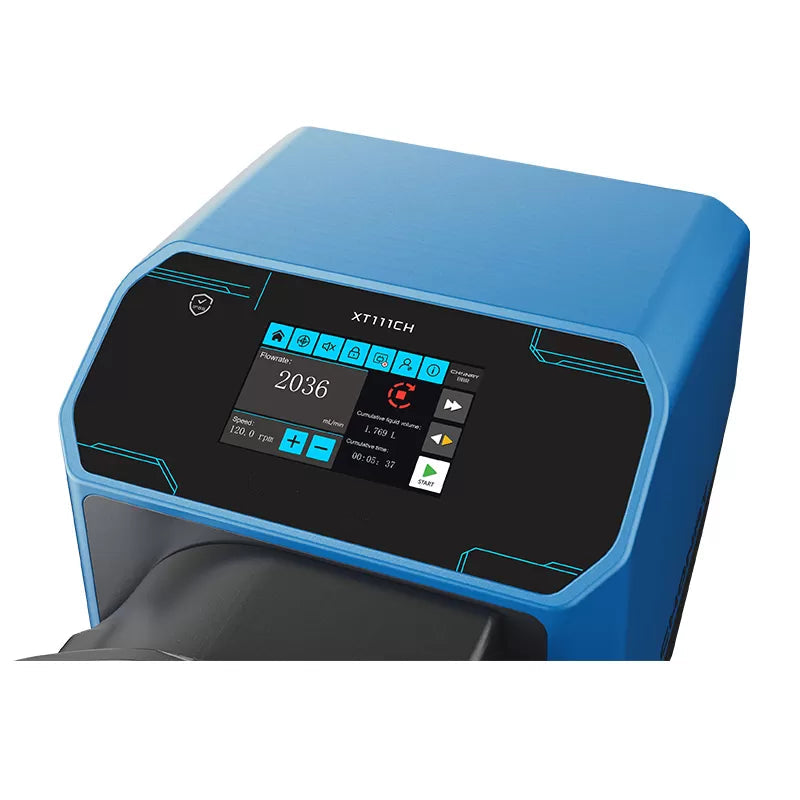

- 5-inch touch screen, clear viewing angle, simple and intuitive operation.
- Support Profibus-DP to achieve factory automation control.

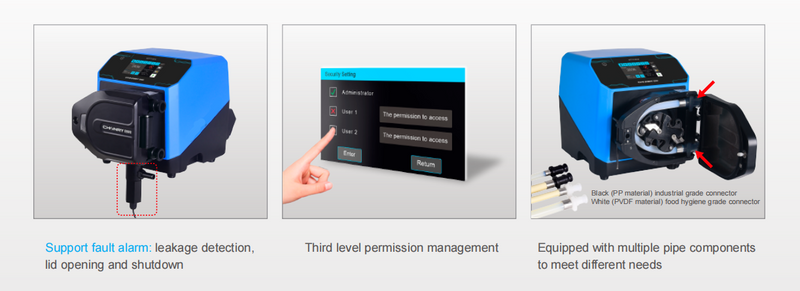

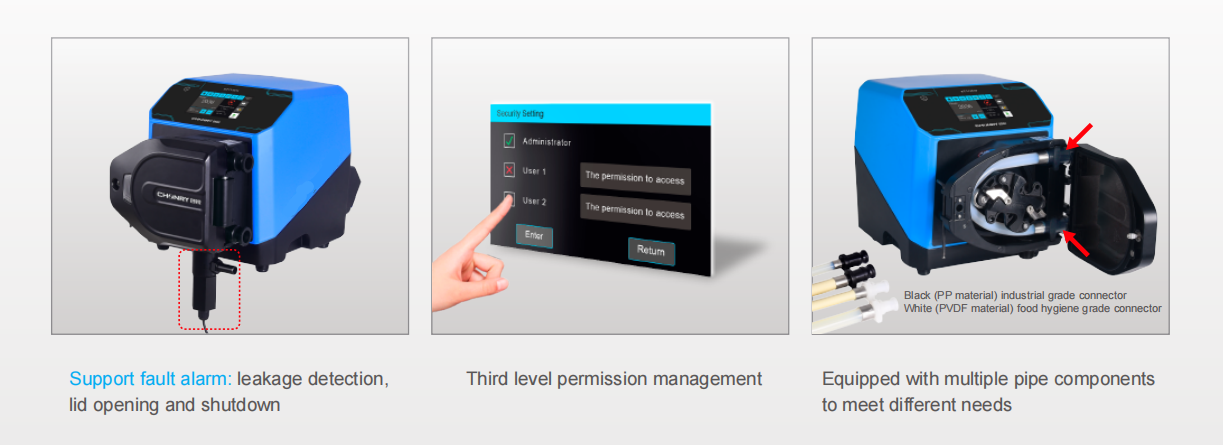

- Equipped with lid opening shutdown and drive fault alarm sensing technology to prevent faults in the process.
- The system is equipped with three-level user access permissions to prevent unauthorized access and operations, improve security efficiency, and comply with GMP requirements.
- Suitable different size of tube: 26#, 73#, 82#, 184#, 186#, 188#.
| Technical Parameter | |
| Driver Model | XT111CH High-Protection IP66 Industrial Peristaltic Pump 18L/min |
| Max Speed | 265rpm (reversible) |
| Max Flow | 18L/min |
| Speed Resolution | 0.1rpm |
| Display method | 5-inch LCD screen |
| Control method | Touch screen control, DP communication control |
| Work Mode |
Liquid transmission mode (The pump runs continuously at the set flow rate, and displays the flow rate and pump speed on the screen) |
| Back suction angle | 0°~3600°(0° means no back suction) |
| Back suction speed | 10-265rpm |
| Rated Power | 400W |
| Driver size | 372×286×308mm |
| Driver weight | 17.8 kg(With sealing components) |
| Lock Screen function | Yes |
| Leakage detection function | Yes( Optional ) |
| Supply voltage | 100-120V/200-240V 50/60Hz 1pH(Depends on regional power cord set and power supply) |
| External Control interface | Profibus DP |
| Storage Temperature | -25°C to 65°C |
| Ambient temperature | 5°C to 40°C |
| Protection Level | IP66 |
| Pump Head | Tube Size | Tube Material | Tube Specifications | Max Speed | Max Flow | Max Pressure |
|
GY3512R (2 rollers) |
26# | Silicone | 6.4x3.2 mm | 265rpm | 3.2L/min | 0.2MPa |
| 73# | Silicone | 9.6x3.2 mm | 265rpm | 6.8L/min | 0.2MPa | |
| 82# | Silicone | 12.7x3.2 mm | 265rpm | 10.6L/min | 0.2MPa | |
| 184# | Silicone | 15.9x3.2 mm | 265rpm | 10.6L/min | 0.2MPa |
| Pump Head | Tube Size | Tube Material | Tube Specifications | Max Speed | Max Flow | Max Pressure |
|
GY4012RE (2 rollers) |
186# | Silicone | 12x4 mm | 265rpm | 9L/min | 0.2MPa |
| 188# | Silicone | 17x4 mm | 265rpm | 16L/min | 0.2MPa | |
| Marprene''TM | 17x4 mm | 265rpm | 18L/min | 0.4MPa |
| Pump Head | Tube Size | Tube Material | Tube Specifications | Max Speed | Max Flow | Max Pressure |
|
GY4014RE (4 rollers) |
186# | Silicone | 12x4 mm | 265rpm | 8.7L/min | 0.2MPa |
| 188# | Silicone | 17x4 mm | 265rpm | 11L/min | 0.2MPa | |
| Marprene''TM | 17x4 mm | 265rpm | 11L/min | 0.4MPa |
Test conditions:
1. Flow data testing environment for indoor temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.
2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, the total length of the tube is
not more than 1.5 meters (inlet end + outlet end + test end).
Test conditions:
The above data is tested under normal temperature and pressure, the test hose is a silicone tube, and the test liquid is water.
The data is for reference only, please refer to the actual situation.
