Designed for precision and efficiency, the 4-XP Filling Machine is ideal for high-viscosity liquids such as honey, chocolate, jams, and bakery fillings. It ensures hygienic and reliable performance in food, cosmetics, and pharmaceutical industries. Features intelligent control that reduces human error and boosts productivity.
- Flow Rate: 4.5 L/min
- Voltage: 100V–240V AC / DC12V
- Power: ≤120W
- Weight: 10 kg
- Pump Type: Gear
- Viscosity: 1000cP – 18000cP
| SKU | Image | Model | Brix | Rated Voltage | Rated Power | Weight | Packing | Pump Type | Flow Rate | Viscosity Capacity | Bottle Height | More Info |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3-X-FM |  |
3-X (Conveyor) | For honey < 44°Bx | 110V-240V | ≤120w | 10kg | 310*168*245mm | Gear | 900-1000L/h | 1000CP-18000CP | / | View Details |
| 4-XP-FM |  |
4-XP | For honey < 42.5°Bx and T > 20°C | DC12V AC100-240V | ≤120w | 9KG | 400*400*250mm | Gear | 4.5L/min | 1000CP-18000CP | 20g-5000g | View Details |
| 5-X-FM |  |
5-X | For honey < 42.5°Bx and T > 20°C | DC24V AC100-240V | ≤120w | 10KG | 400*400*250mm | Gear | 6L/min | 1000CP-18000CP | 30g-6000g | View Details |

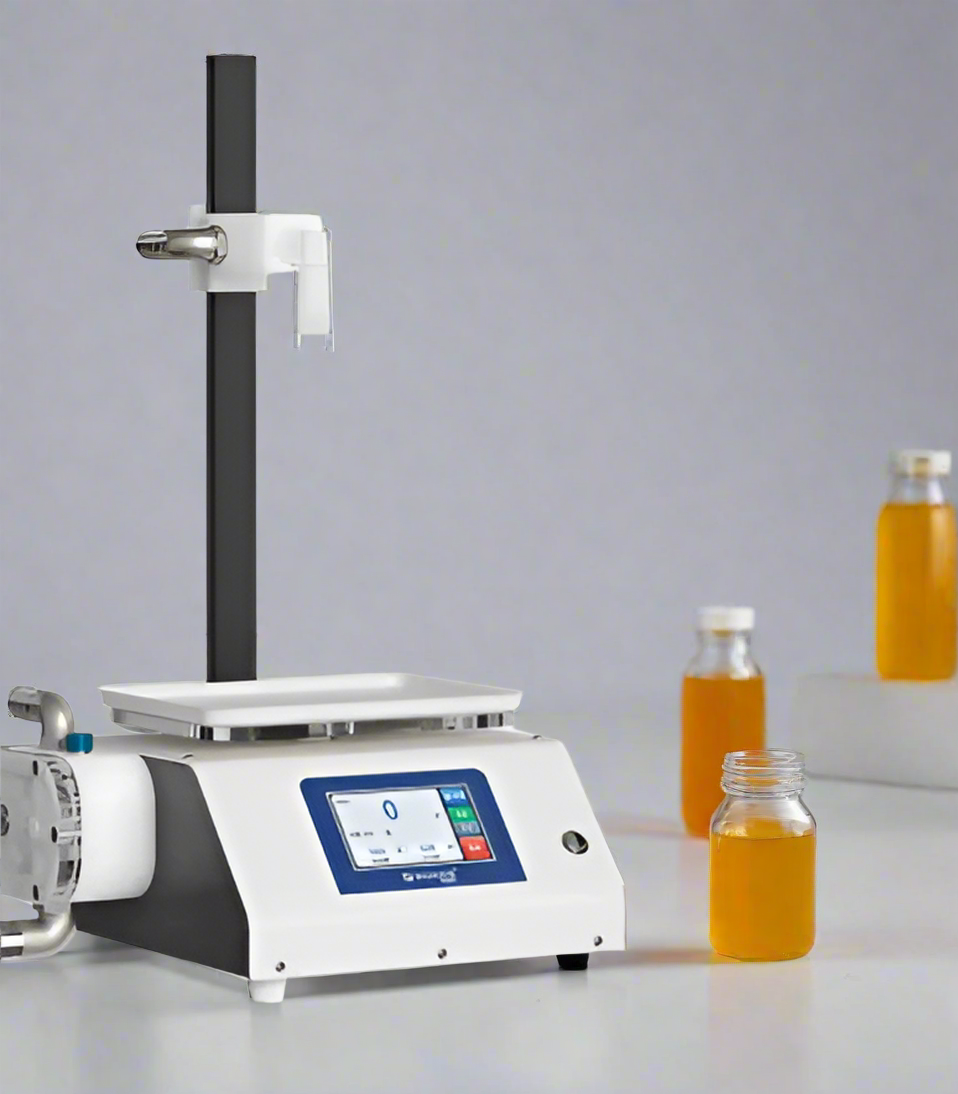

| 5-XP-FM |  |
5-XP | For honey < 43.5°Bx and T > 10°C | DC24V AC100-240V | ≤250w | 13KG | 400*400*320mm | Gear | 10L/min | 1000CP-18000CP | 30g-10000g | View Details |

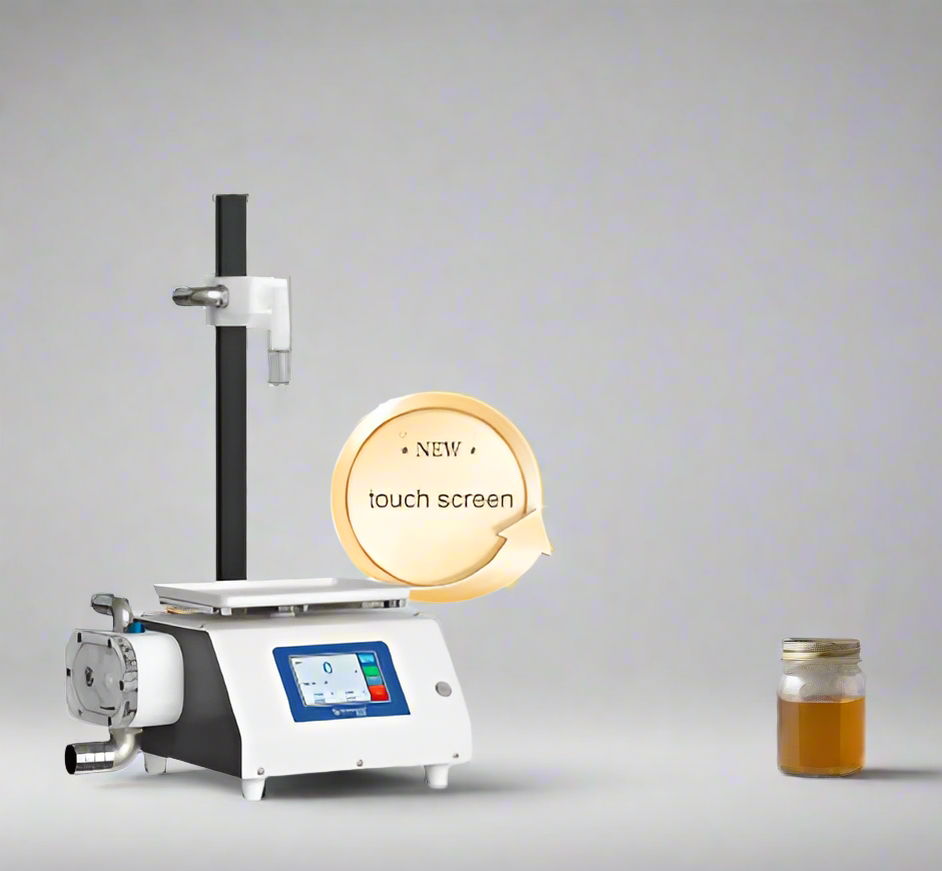

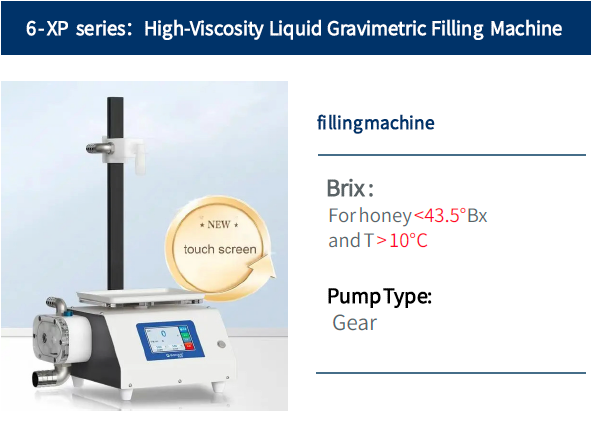

| 6-XP-FM |  |
6-XP | For honey < 43.5°Bx and T > 10°C | DC24V AC100-240V | ≤250w | 13KG | 400*400*320mm | Gear | 10L/min | 1000CP-18000CP | 30g-10000g | View Details |
| 7-X-FM |  |
7-X | For honey < 43.5°Bx and T > 10°C | DC24V AC100-240V | ≤250w | 35KG | 605*495*510mm | Gear | 20L/min | 1000CP-18000CP | 50g-10000g | View Details |
| 8-X-2-FM |  |
8-X-2 | For honey < 43.5°Bx and T > 10°C | 110V-240V | ≤260w | 25KG | 580*420*400mm | Gear | 11L/min | 1000cp-18000cp | 10g-10000g | View Details |
| 8-X-1-FM |  |
8-X-1 | For honey < 43.5°Bx and T > 10°C | 110V-240V | ≤260w | 25KG | 580*420*400mm | Gear | 11L/min | 1000cp-18000cp | 10g-10000g | View Details |
| 9-X-2-FM |  |
9-X-2 | For honey < 42.5°Bx and T > 10°C | 110V-240V | ≤260w | 20KG | 500*350*350mm | Gear, Impeller, Peristaltic | 15L/min | 50cp-10000cp | ≥1g | View Details |
| 9-X-1-FM |  |
9-X-1 | For honey < 42.5°Bx and T > 10°C | 110V-240V | ≤260w | 20KG | 500*350*350mm | Gear, Impeller, Peristaltic | 15L/min | 50cp-10000cp | ≥1g | View Details |
| 2-X-FM |  |
2-X | For honey < 43.5°Bx and T > 20°C | 110V-240V | ≤260w | 16KG | 405*380*585mm | Gear | 11L/min | 1000cp-18000cp | ≥10g adjustable | View Details |
| 13-Y-FM |  |
13-Y | 316L pump, can be used for corrosive liquids | 110V-240V | ≤120w | 8KG | 320*260*555mm | Magnetic Gear | 6L/min | 1-100CP | 10g-10000g | View Details |
| 5-Y-FM |  |
5-Y | Suitable for liquids containing particles ≤ 6mm | 110V-240V | ≤120w | 9KG | 340*260*555mm | Flexible Impeller Pump | 15L/min | / | 100g-10000g | View Details |
| 8-X-3-FM |  |
8-X-3 | For honey < 43.5°Bx and T > 10°C | 110V-240V | ≤400w | 65KG | 885*670*635mm | Gear | 10L/min | 1000-18000CP | 5g-2000g | View Details |
| 9-X-4-FM |  |
9-X-4 | For honey < 42.5°Bx and T > 10°C | 110V-240V | ≤400w | 62KG | 850*600*635mm | Gear | 10L/min | 1000-18000CP | 1g-500g | View Details |
| L-1-FM |  |
L-1 | 316L (material) | / | / | / | / | / | / | / | / | View Details |
| L-2-FM |  |
L-2 | 316L (material) | / | / | / | / | / | / | / | / | View Details |
| L-3-FM |  |
L-3 | 316L (material) | / | / | / | / | / | / | / | / | View Details |
| L-4-FM |  |
L-4 | 316L (material) | / | / | / | / | / | / | / | / | View Details |
| L-5-FM |  |
L-5 | 316L (material) | / | / | / | / | / | / | / | / | View Details |
| L-6-FM |  |
L-6 | 316L (material) | / | / | / | / | / | / | / | / | View Details |
| L-7-FM |  |
L-7 | 316L (material) | / | / | / | / | / | / | / | / | View Details |
| L-8-FM |  |
L-8 | / | / | / | / | / | / | / | / | / | View Details |
| L-9-FM |  |
L-9 | / | / | / | / | / | / | / | / | / | View Details |
| L-10-FM |  |
L-10 | / | / | / | / | / | / | / | / | / | View Details |
| L-11-FM |  |
L-11 | / | / | / | / | / | / | / | / | / | View Details |
Smart Liquid Filling Machine
Automatically adjusts filling parameters, reducing human error and increasing efficiency. Delivers consistent ad precise filling for enhanced product quality. Enhance your production process with the automated filling system, designed to minimize errors and boost productivity. Experience reliable and accurate filling for top-quality products.
Perfect for honey, sauces, oils, and more - built to scale with your business.
